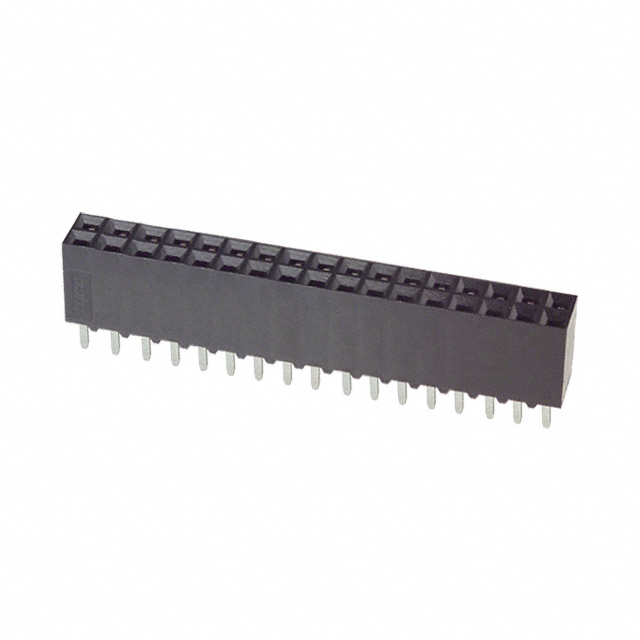

1-534236-7

CONN RCPT 34POS 0.1 GOLD PCB

Manufacturer: TE Connectivity AMP Connectors

Categories: Headers, Receptacles, Female Sockets

Quality Control: Learn More

34 Position Receptacle, Bottom or Top Entry Connector 0.100"" (2.54mm) Through Hole Gold

Additional Information

Series: AMPMODU Mod IIRoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: 19 week(s)Product Status: ActivePackaging: TubeDatasheet:
Technical Details:
Features-
PackagingTube
Connector TypeReceptacle, Bottom or Top Entry
Voltage Rating-
Current Rating (Amps)-
Mounting TypeThrough Hole
Number of Positions34
StyleBoard to Board
Operating Temperature-65°C ~ 105°C
Contact TypeFemale Socket
Fastening TypePush-Pull
Number of Positions LoadedAll
TerminationSolder
Ingress Protection-
Material Flammability Rating-
Mated Stacking Heights-
Insulation ColorBlack
Pitch - Mating0.100"" (2.54mm)
Contact Finish - MatingGold
Contact Finish Thickness - Mating30.0µin (0.76µm)
Contact Finish - PostTin-Lead
Contact Length - Post-
Insulation Height0.340"" (8.64mm)
Row Spacing - Mating0.100"" (2.54mm)
Number of Rows2
