796859-6
TERM BLOCK PLUG 6POS STR 5.08MMManufacturer: TE Connectivity AMP Connectors
Categories: Headers, Plugs and Sockets
Quality Control: Learn More

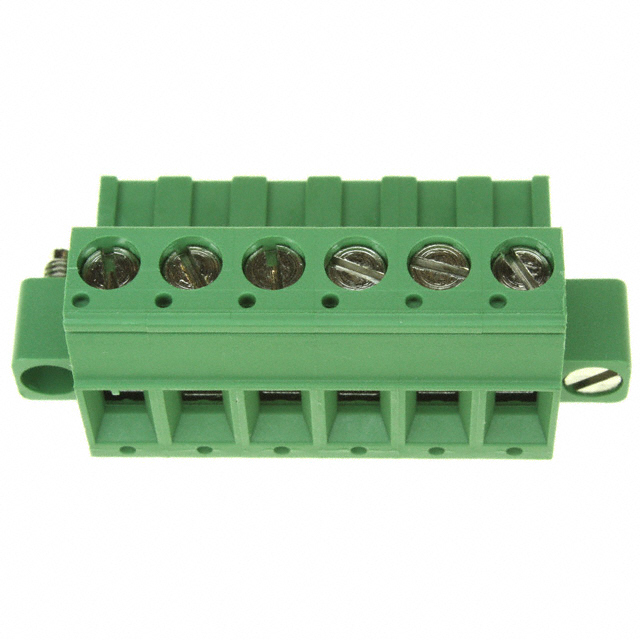

TE Connectivity AMP Connectors Buchanan series plug, part number 796859-6, is a 6-position, 180° free-hanging (in-line) terminal block with female sockets. It features a 0.200" (5.08mm) pitch and a green housing. This plug is designed for robust connections, supporting wire gauges from 12-30 AWG (0.05-3mm²) with a rising cage clamp screw termination. It is rated for 15 A and 300 V (UL), with a contact mating finish of tin. The operating temperature range is -40°C to 110°C. This component is suitable for applications in industrial automation and power distribution. It is supplied in bulk packaging and includes a mating flange for secure assembly.
Additional Information
Series: BuchananRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Mating Flange |
| Packaging | Bulk |
| Color | Green |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 6 |
| Pitch | 0.200"" (5.08mm) |
| Type | Plug, Female Sockets |
| Operating Temperature | -40°C ~ 110°C |
| Termination Style | Screw - Rising Cage Clamp |
| Current - IEC | - |
| Number of Levels | 1 |
| Wire Gauge or Range - AWG | 12-30 AWG |
| Wire Gauge or Range - mm² | 0.05-3mm² |
| Positions Per Level | 6 |
| Header Orientation | - |
| Plug Wire Entry | 180° |
| Contact Mating Finish | Tin |
| Current - UL | 15 A |
| Voltage - UL | 300 V |
