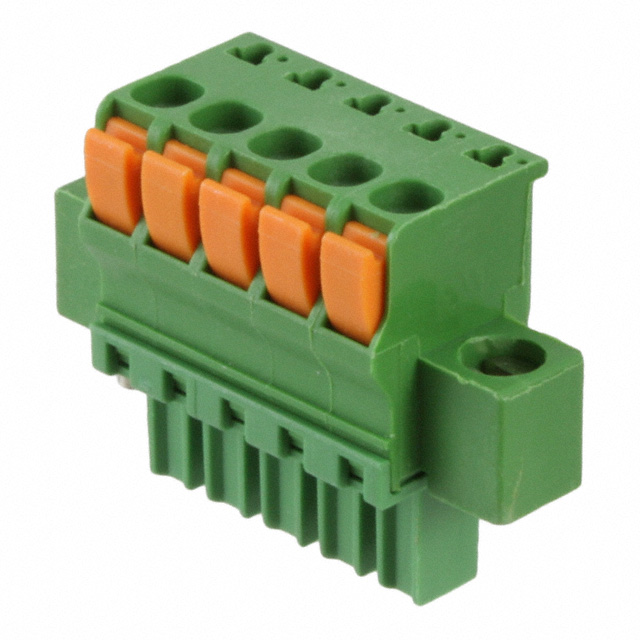

1986726-5
TERM BLOCK PLUG 5POS STR 3.81MMManufacturer: TE Connectivity AMP Connectors
Categories: Headers, Plugs and Sockets
Quality Control: Learn More
TE Connectivity AMP Connectors presents the 1986726-5, a 5-position terminal block plug designed for 180° free-hanging (in-line) applications. This component features female sockets with a 0.150" (3.81mm) pitch and a screwless termination style utilizing push-in spring technology. Rated for 9A (UL) and 300V (UL), it accommodates wire gauges from 14-30 AWG (0.05-2mm²). The plug includes a mating flange for enhanced connection security and operates within a temperature range of -40°C to 110°C. Its green color and tin contact mating finish are standard for this bulk-packaged component. This versatile connector is utilized across various industrial automation and power control systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Mating Flange |
| Packaging | Bulk |
| Color | Green |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 5 |
| Pitch | 0.150"" (3.81mm) |
| Type | Plug, Female Sockets |
| Operating Temperature | -40°C ~ 110°C |
| Termination Style | Screwless - Leg Spring, Push-In Spring |
| Current - IEC | - |
| Number of Levels | 1 |
| Wire Gauge or Range - AWG | 14-30 AWG |
| Wire Gauge or Range - mm² | 0.05-2mm² |
| Positions Per Level | 5 |
| Header Orientation | - |
| Plug Wire Entry | 180° |
| Contact Mating Finish | Tin |
| Current - UL | 9 A |
| Voltage - UL | 300 V |
