1986726-4
TERM BLOCK PLUG 4POS STR 3.81MMManufacturer: TE Connectivity AMP Connectors
Categories: Headers, Plugs and Sockets
Quality Control: Learn More

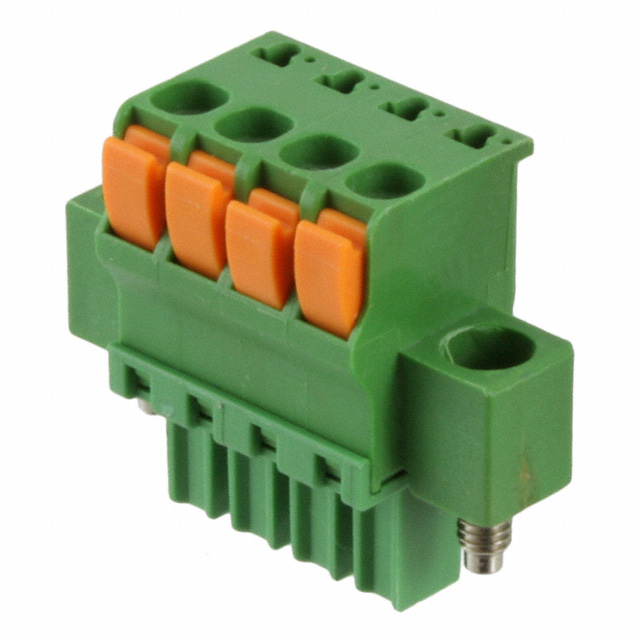

TE Connectivity AMP Connectors presents the 1986726-4, a 4-position terminal block plug designed for robust interconnectivity. This free-hanging (in-line) component features female sockets with a 3.81mm (0.150") pitch and a 180° plug wire entry. Engineered for reliable performance, it supports a current rating of 9 A (UL) and a voltage rating of 300 V (UL). The plug utilizes screwless leg spring, push-in spring termination, accommodating wire gauges from 14-30 AWG (0.05-2mm²). Its green housing is complemented by a tin contact mating finish and includes a mating flange for enhanced securement. This component is suitable for applications in industrial automation, power supplies, and lighting systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Mating Flange |
| Packaging | Bulk |
| Color | Green |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 4 |
| Pitch | 0.150"" (3.81mm) |
| Type | Plug, Female Sockets |
| Operating Temperature | -40°C ~ 110°C |
| Termination Style | Screwless - Leg Spring, Push-In Spring |
| Current - IEC | - |
| Number of Levels | 1 |
| Wire Gauge or Range - AWG | 14-30 AWG |
| Wire Gauge or Range - mm² | 0.05-2mm² |
| Positions Per Level | 4 |
| Header Orientation | - |
| Plug Wire Entry | 180° |
| Contact Mating Finish | Tin |
| Current - UL | 9 A |
| Voltage - UL | 300 V |
