1986484-6

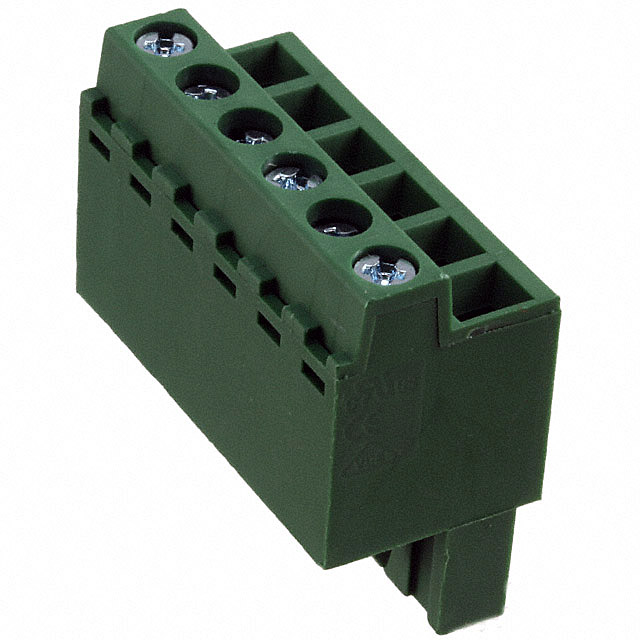

TERM BLOCK PLUG 6POS STR 5.08MMManufacturer: TE Connectivity AMP Connectors
Categories: Headers, Plugs and Sockets
Quality Control: Learn More
6 Position Terminal Block Plug, Female Sockets 0.200"" (5.08mm) 180° Free Hanging (In-Line)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Retention Latches (Non-Wire Side) |
| Packaging | Bulk |
| Color | Green |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 6 |
| Pitch | 0.200"" (5.08mm) |
| Type | Plug, Female Sockets |
| Operating Temperature | -40°C ~ 105°C |
| Termination Style | Screw - Pressure Clip |
| Current - IEC | - |
| Number of Levels | 1 |
| Wire Gauge or Range - AWG | 14-24 AWG |
| Wire Gauge or Range - mm² | 0.2-2mm² |
| Positions Per Level | 6 |
| Header Orientation | - |
| Plug Wire Entry | 180° |
| Contact Mating Finish | Tin |
| Current - UL | 16 A |
| Voltage - UL | 300 V |
