1986375-3
TERM BLOCK PLUG 3POS 3.81MMManufacturer: TE Connectivity AMP Connectors
Categories: Headers, Plugs and Sockets
Quality Control: Learn More

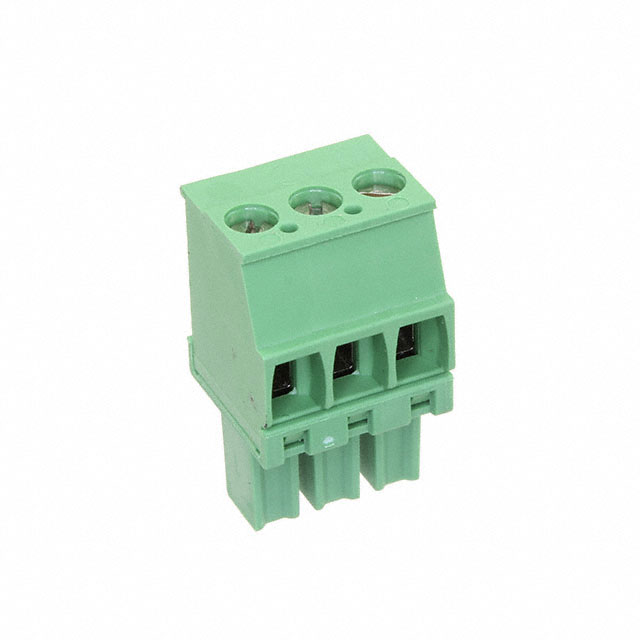

TE Connectivity AMP Connectors, a 3-position terminal block plug, part number 1986375-3, features female sockets with a 0.150" (3.81mm) pitch and a 270° plug wire entry. This free-hanging (in-line) component supports side stacking and is rated for 11 A and 300 V (UL). Termination is achieved via a rising cage clamp screw, accommodating wire gauges from 14-30 AWG (0.05-2mm²). The contact mating finish is tin, and the operating temperature range is -40°C to 110°C. This electronic component is commonly utilized in industrial automation, motor control, and power supply applications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Side Stacking |
| Packaging | Bulk |
| Color | Green |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 3 |
| Pitch | 0.150"" (3.81mm) |
| Type | Plug, Female Sockets |
| Operating Temperature | -40°C ~ 110°C |
| Termination Style | Screw - Rising Cage Clamp |
| Current - IEC | - |
| Number of Levels | 1 |
| Wire Gauge or Range - AWG | 14-30 AWG |
| Wire Gauge or Range - mm² | 0.05-2mm² |
| Positions Per Level | 3 |
| Header Orientation | - |
| Plug Wire Entry | 270° |
| Contact Mating Finish | Tin |
| Current - UL | 11 A |
| Voltage - UL | 300 V |
