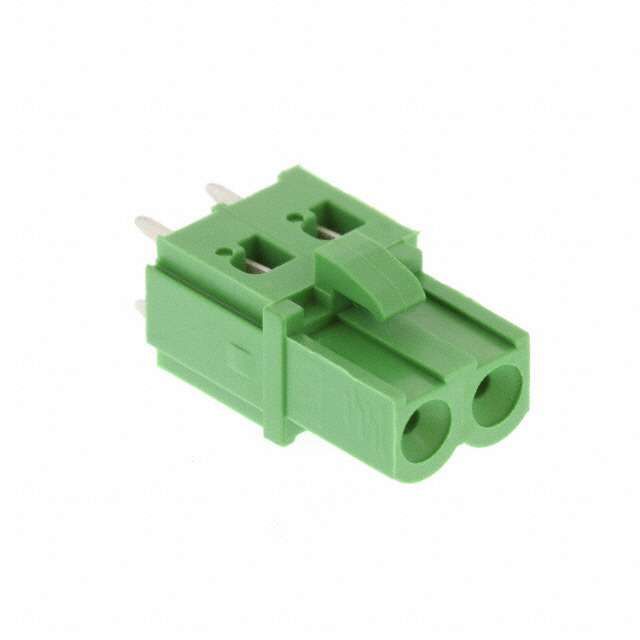

1986258-2
VERTICAL BDMT PLUG 2 POSN, 5.08MManufacturer: TE Connectivity AMP Connectors
Categories: Headers, Plugs and Sockets
Quality Control: Learn More
2 Position Terminal Block Header, Female Sockets 0.200"" (5.08mm) Vertical Through Hole
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Retention Latches |
| Packaging | Bulk |
| Color | Green |
| Mounting Type | Through Hole |
| Number of Positions | 2 |
| Pitch | 0.200"" (5.08mm) |
| Type | Header, Female Sockets |
| Operating Temperature | -40°C ~ 110°C |
| Termination Style | Solder |
| Current - IEC | - |
| Number of Levels | 1 |
| Wire Gauge or Range - AWG | 12-30 AWG |
| Wire Gauge or Range - mm² | - |
| Positions Per Level | 2 |
| Header Orientation | Vertical |
| Plug Wire Entry | - |
| Contact Mating Finish | Tin |
| Current - UL | 15 A |
| Voltage - UL | 300 V |
