1776263-6

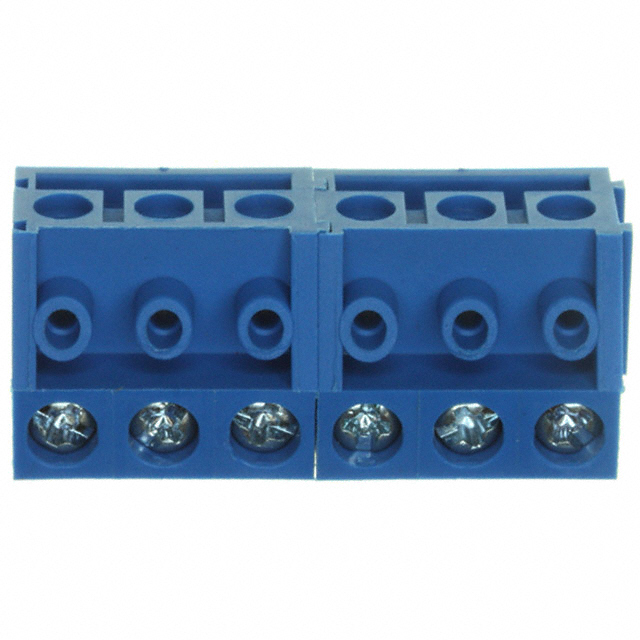

TERM BLOCK PLUG 6POS 90DEG 5MM

Manufacturer: TE Connectivity AMP Connectors

Categories: Headers, Plugs and Sockets

Quality Control: Learn More

TE Connectivity AMP Connectors Buchanan series plug, part number 1776263-6, is a 6-position, 90° free-hanging terminal block designed for unshrouded headers with a 5.00mm (0.197") pitch. This blue, bulk-packaged component features interlocking capabilities and a screw-leaf spring termination style with wire guard, supporting wire gauges from 16-24 AWG (0.2-1.4mm²). It offers a UL current rating of 10A and a UL voltage rating of 300V, with a contact mating finish of tin. Operating within a temperature range of -40°C to 105°C, this plug is suitable for applications in industrial automation, power distribution, and control systems.

Additional Information

Series: BuchananRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: BulkDatasheet:
Technical Details:
FeaturesInterlocking (Side)
PackagingBulk
ColorBlue
Mounting TypeFree Hanging (In-Line)
Number of Positions6
Pitch0.197"" (5.00mm)
TypePlug for Unshrouded Header
Operating Temperature-40°C ~ 105°C
Termination StyleScrew - Leaf Spring, Wire Guard
Current - IEC-
Number of Levels1
Wire Gauge or Range - AWG16-24 AWG
Wire Gauge or Range - mm²0.2-1.4mm²
Positions Per Level6
Header Orientation-
Plug Wire Entry90°
Contact Mating FinishTin
Current - UL10 A
Voltage - UL300 V
