1-284507-3
TERM BLOCK PLUG 13POS STR 3.81MMManufacturer: TE Connectivity AMP Connectors
Categories: Headers, Plugs and Sockets
Quality Control: Learn More
TE Connectivity AMP Connectors Buchanan series terminal block plug, part number 1-284507-3. This 13-position, 180° free-hanging plug features female sockets with a 0.150" (3.81mm) pitch. It supports wire gauges from 14-30 AWG (0.05-2mm²) and utilizes a rising cage clamp screw termination style. The plug offers a UL current rating of 11A and a UL voltage rating of 300V. Designed for side stacking, it operates within a temperature range of -40°C to 110°C. The contact mating finish is tin. This component is commonly found in industrial automation, control systems, and power distribution applications.
Additional Information
Series: BuchananRoHS Status: Vendor undefinedManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Side Stacking |
| Packaging | Bulk |
| Color | Green |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 13 |
| Pitch | 0.150"" (3.81mm) |
| Type | Plug, Female Sockets |
| Operating Temperature | -40°C ~ 110°C |
| Termination Style | Screw - Rising Cage Clamp |
| Current - IEC | - |
| Number of Levels | 1 |
| Wire Gauge or Range - AWG | 14-30 AWG |
| Wire Gauge or Range - mm² | 0.05-2mm² |
| Positions Per Level | 13 |
| Header Orientation | - |
| Plug Wire Entry | 180° |
| Contact Mating Finish | Tin |
| Current - UL | 11 A |
| Voltage - UL | 300 V |
Request a Quote
Clients Also Buy
1-1437403-3
CONN TERM BLK
1-1546073-1
TERM BLK 11P TOP ENT 5.08MM PCB

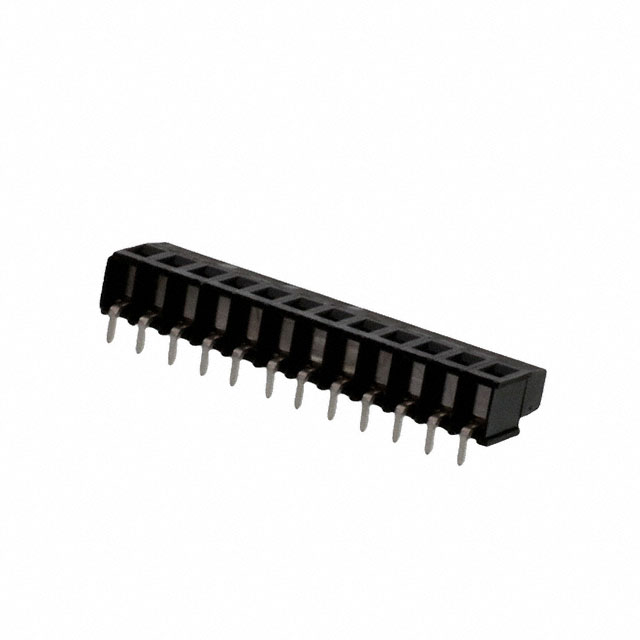

1-1546073-2
