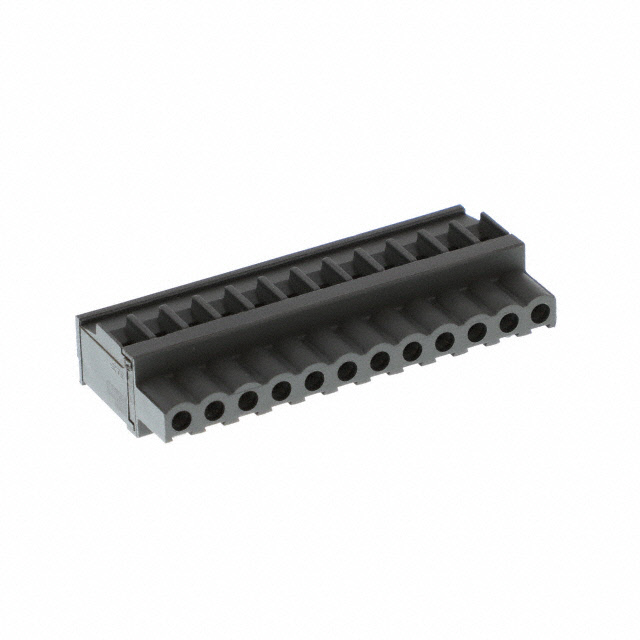

1-2213934-2
SMT TB PERP PLUG, 5.0MM, 12 POSManufacturer: TE Connectivity AMP Connectors
Categories: Headers, Plugs and Sockets
Quality Control: Learn More
12 Position Terminal Block Plug, Female Sockets 0.197"" (5.00mm) 270° Free Hanging (In-Line)
Additional Information
Series: WireMate, TB, BuchananRoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Retention Latches (Non-Wire Side) |
| Packaging | Bulk |
| Color | Black |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 12 |
| Pitch | 0.197"" (5.00mm) |
| Type | Plug, Female Sockets |
| Operating Temperature | - |
| Termination Style | Screw |
| Current - IEC | - |
| Number of Levels | 1 |
| Wire Gauge or Range - AWG | 12-26 AWG |
| Wire Gauge or Range - mm² | - |
| Positions Per Level | 12 |
| Header Orientation | - |
| Plug Wire Entry | 270° |
| Contact Mating Finish | - |
| Current - UL | 10 A |
| Voltage - UL | 300 V |
Request a Quote
Clients Also Buy

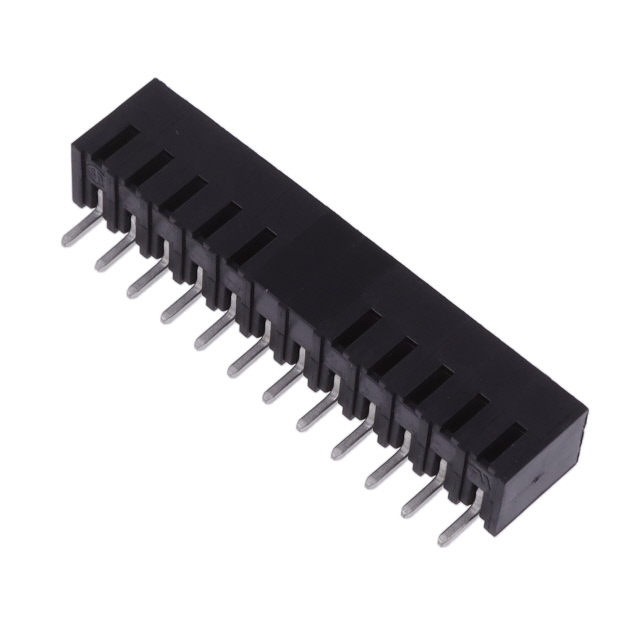

1-2213932-2
SMT TB R/A HEADER, 3.5MM, 12 POS
1-2213933-2
SMT TB R/A HEADER, RET, 3.5MM, 1

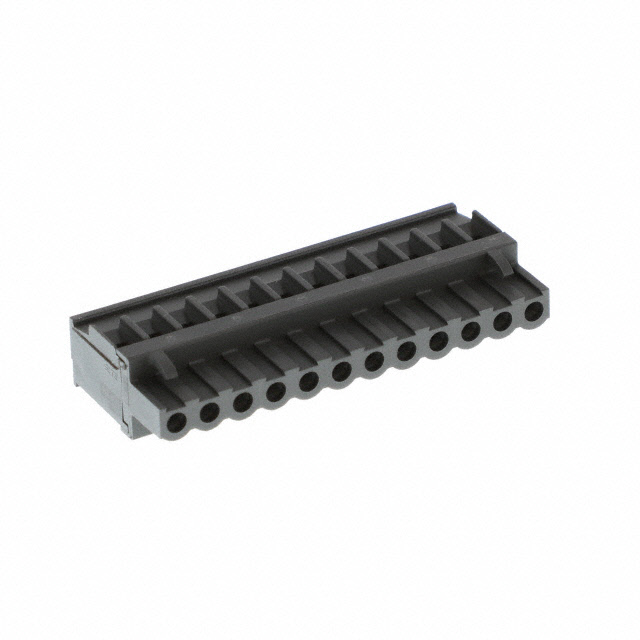

1-2213935-2
