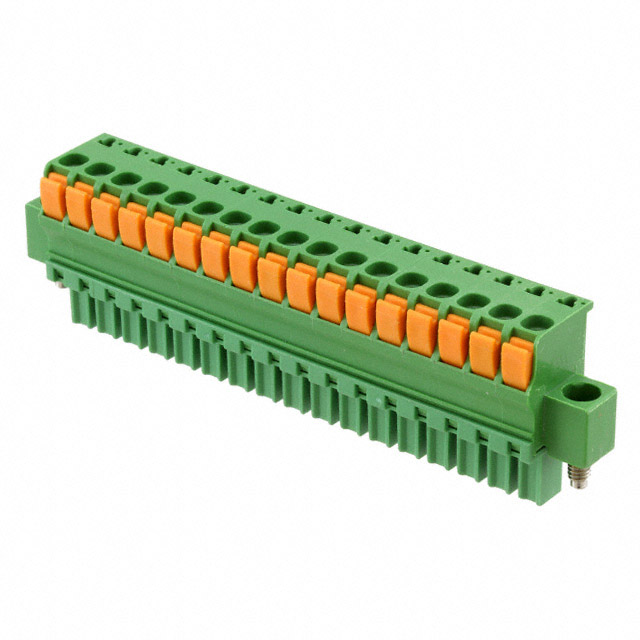

1-1986726-7
TERM BLOCK PLUG 17POS STR 3.81MMManufacturer: TE Connectivity AMP Connectors
Categories: Headers, Plugs and Sockets
Quality Control: Learn More
TE Connectivity AMP Connectors 1-1986726-7 is a 17-position, 180° free-hanging plug with female sockets. Featuring a 3.81mm pitch and a mating flange, this component utilizes a screwless, leg spring, push-in spring termination style. It is rated for 9A (UL) and 300V (UL), with a wire gauge range of 14-30 AWG (0.05-2mm²). The contact mating finish is tin. Operating temperature ranges from -40°C to 110°C. This terminal block plug is commonly employed in industrial automation, building automation, and control systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | Mating Flange |
| Packaging | Box |
| Color | Green |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 17 |
| Pitch | 0.150"" (3.81mm) |
| Type | Plug, Female Sockets |
| Operating Temperature | -40°C ~ 110°C |
| Termination Style | Screwless - Leg Spring, Push-In Spring |
| Current - IEC | - |
| Number of Levels | 1 |
| Wire Gauge or Range - AWG | 14-30 AWG |
| Wire Gauge or Range - mm² | 0.05-2mm² |
| Positions Per Level | 17 |
| Header Orientation | - |
| Plug Wire Entry | 180° |
| Contact Mating Finish | Tin |
| Current - UL | 9 A |
| Voltage - UL | 300 V |
