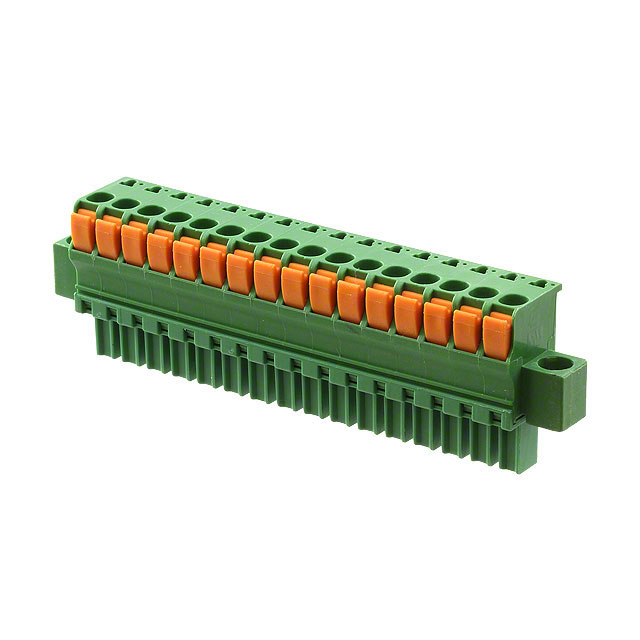

1-1986726-6
TERM BLOCK PLUG 16POS STR 3.81MMManufacturer: TE Connectivity AMP Connectors
Categories: Headers, Plugs and Sockets
Quality Control: Learn More
TE Connectivity AMP Connectors' 1-1986726-6 is a 16-position, 180° plug with female sockets designed for in-line, free-hanging applications. Featuring a 0.150" (3.81mm) pitch, this component utilizes screwless push-in spring termination for wire gauges ranging from 30 to 14 AWG (0.05-2mm²). The plug's mating surfaces are finished with tin for reliable connectivity. It operates within a -40°C to 110°C temperature range and supports a UL current rating of 9 A at 300 V. This robust connection solution is commonly found in industrial automation, building automation, and general electronics manufacturing. The unit is supplied in box packaging and includes a mating flange for enhanced assembly security.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | Mating Flange |
| Packaging | Box |
| Color | Green |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 16 |
| Pitch | 0.150"" (3.81mm) |
| Type | Plug, Female Sockets |
| Operating Temperature | -40°C ~ 110°C |
| Termination Style | Screwless - Leg Spring, Push-In Spring |
| Current - IEC | - |
| Number of Levels | 1 |
| Wire Gauge or Range - AWG | 14-30 AWG |
| Wire Gauge or Range - mm² | 0.05-2mm² |
| Positions Per Level | 16 |
| Header Orientation | - |
| Plug Wire Entry | 180° |
| Contact Mating Finish | Tin |
| Current - UL | 9 A |
| Voltage - UL | 300 V |
