1-1986726-3
TERM BLOCK PLUG 13POS STR 3.81MMManufacturer: TE Connectivity AMP Connectors
Categories: Headers, Plugs and Sockets
Quality Control: Learn More

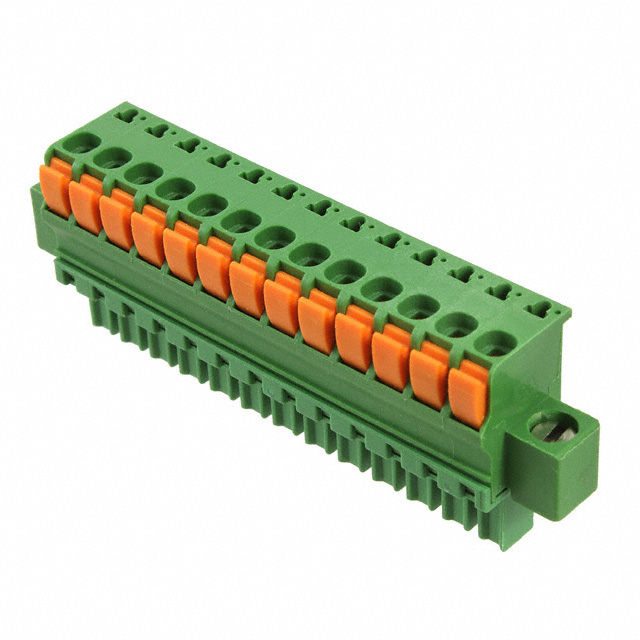

TE Connectivity AMP Connectors' 1-1986726-3 is a 13-position terminal block plug featuring female sockets with a 3.81mm (0.150") pitch. This component offers a 180° free-hanging, in-line mounting configuration. It supports wire gauges from 14-30 AWG (0.05-2mm²) and has a UL current rating of 9A with a UL voltage rating of 300V. The termination style utilizes screwless leg spring and push-in spring technology, facilitating efficient connections. The contact mating finish is tin, and the unit operates within a temperature range of -40°C to 110°C. This connector is suitable for industrial automation, control systems, and power distribution applications. The green colored plug includes a mating flange for enhanced mechanical stability. It is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Mating Flange |
| Packaging | Bulk |
| Color | Green |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 13 |
| Pitch | 0.150"" (3.81mm) |
| Type | Plug, Female Sockets |
| Operating Temperature | -40°C ~ 110°C |
| Termination Style | Screwless - Leg Spring, Push-In Spring |
| Current - IEC | - |
| Number of Levels | 1 |
| Wire Gauge or Range - AWG | 14-30 AWG |
| Wire Gauge or Range - mm² | 0.05-2mm² |
| Positions Per Level | 13 |
| Header Orientation | - |
| Plug Wire Entry | 180° |
| Contact Mating Finish | Tin |
| Current - UL | 9 A |
| Voltage - UL | 300 V |
