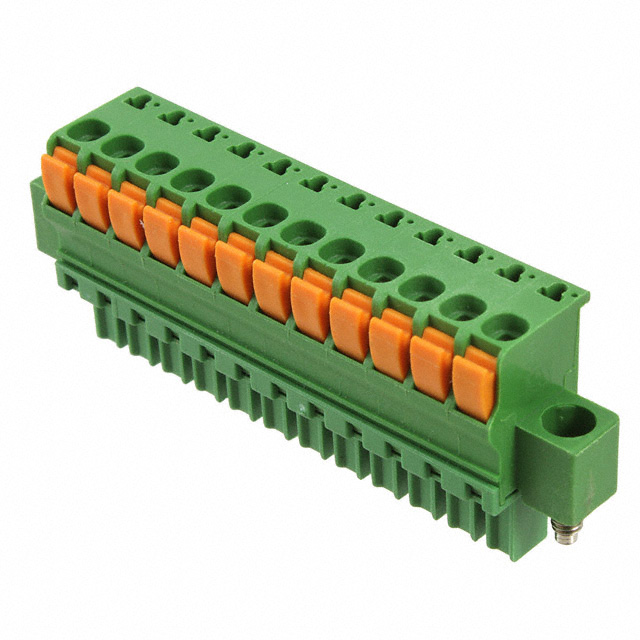

1-1986726-2
TERM BLOCK PLUG 12POS STR 3.81MMManufacturer: TE Connectivity AMP Connectors
Categories: Headers, Plugs and Sockets
Quality Control: Learn More
TE Connectivity AMP Connectors offers the 1-1986726-2, a 12-position terminal block plug designed for robust interconnectivity. This 180° free-hanging (in-line) component features female sockets with a 0.150" (3.81mm) pitch, suitable for wire gauges ranging from 14-30 AWG (0.05-2mm²). The plug utilizes screwless leg spring and push-in spring termination for efficient wire management. With a UL current rating of 9 A and a UL voltage rating of 300 V, it is engineered for reliable performance across various demanding applications. The mating contact finish is tin, and the component includes a mating flange for secure assembly. Operating within a temperature range of -40°C to 110°C, this bulk-packaged terminal block plug is a foundational element in industrial automation, power distribution, and control systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Mating Flange |
| Packaging | Bulk |
| Color | Green |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 12 |
| Pitch | 0.150"" (3.81mm) |
| Type | Plug, Female Sockets |
| Operating Temperature | -40°C ~ 110°C |
| Termination Style | Screwless - Leg Spring, Push-In Spring |
| Current - IEC | - |
| Number of Levels | 1 |
| Wire Gauge or Range - AWG | 14-30 AWG |
| Wire Gauge or Range - mm² | 0.05-2mm² |
| Positions Per Level | 12 |
| Header Orientation | - |
| Plug Wire Entry | 180° |
| Contact Mating Finish | Tin |
| Current - UL | 9 A |
| Voltage - UL | 300 V |
