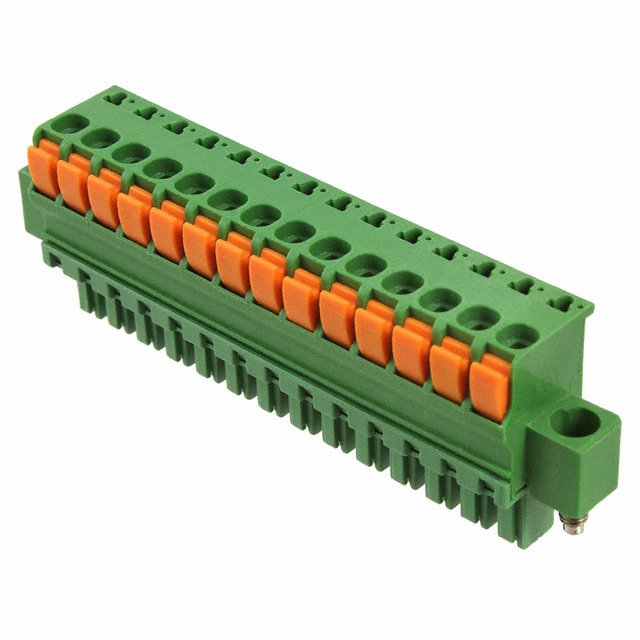

1-1986724-4
TERM BLOCK PLUG 14POS STR 3.81MMManufacturer: TE Connectivity AMP Connectors
Categories: Headers, Plugs and Sockets
Quality Control: Learn More
TE Connectivity AMP Connectors 1-1986724-4 is a 14-position, single-level plug from the Terminal Block category. This 3.81mm pitch device features a 180° plug wire entry and is designed for free-hanging (in-line) mounting. The female sockets offer a tin mating finish and utilize screwless, push-in spring termination. Rated for 9 A and 300 V (UL), this component supports wire gauges from 14 to 30 AWG (0.05-2mm²). Operating temperature range is -40°C to 110°C. This terminal block plug is commonly employed in industrial automation, building automation, and general electronics applications. It is supplied in a box package and includes a mating flange feature.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | Mating Flange |
| Packaging | Box |
| Color | Green |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 14 |
| Pitch | 0.150"" (3.81mm) |
| Type | Plug, Female Sockets |
| Operating Temperature | -40°C ~ 110°C |
| Termination Style | Screwless - Leg Spring, Push-In Spring |
| Current - IEC | - |
| Number of Levels | 1 |
| Wire Gauge or Range - AWG | 14-30 AWG |
| Wire Gauge or Range - mm² | 0.05-2mm² |
| Positions Per Level | 14 |
| Header Orientation | - |
| Plug Wire Entry | 180° |
| Contact Mating Finish | Tin |
| Current - UL | 9 A |
| Voltage - UL | 300 V |
