1-1986724-2
TERM BLOCK PLUG 12POS STR 3.81MMManufacturer: TE Connectivity AMP Connectors
Categories: Headers, Plugs and Sockets
Quality Control: Learn More

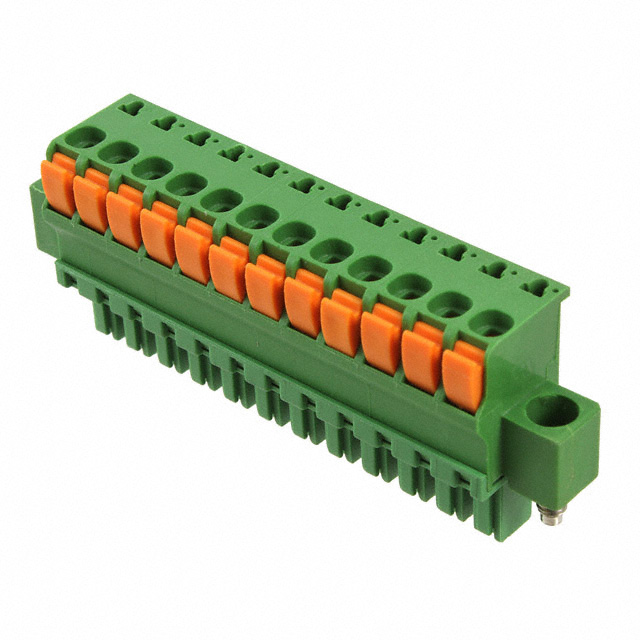

TE Connectivity AMP Connectors' 1-1986724-2 is a 12-position, straight terminal block plug featuring female sockets. This in-line, free-hanging component operates with a 3.81mm pitch. Designed for efficient wire termination, it supports a wire gauge range of 14-30 AWG (0.05-2mm²) utilizing screwless spring-cage connection technology. The plug offers a current rating of 9A (UL) and a voltage rating of 300V (UL). Its operating temperature range is -40°C to 110°C. The contact mating finish is tin, and it includes a mating flange for secure assembly. This component is commonly utilized in industrial automation, power supplies, and control systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Mating Flange |
| Packaging | Bulk |
| Color | Green |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 12 |
| Pitch | 0.150"" (3.81mm) |
| Type | Plug, Female Sockets |
| Operating Temperature | -40°C ~ 110°C |
| Termination Style | Screwless - Leg Spring, Push-In Spring |
| Current - IEC | - |
| Number of Levels | 1 |
| Wire Gauge or Range - AWG | 14-30 AWG |
| Wire Gauge or Range - mm² | 0.05-2mm² |
| Positions Per Level | 12 |
| Header Orientation | - |
| Plug Wire Entry | 180° |
| Contact Mating Finish | Tin |
| Current - UL | 9 A |
| Voltage - UL | 300 V |
