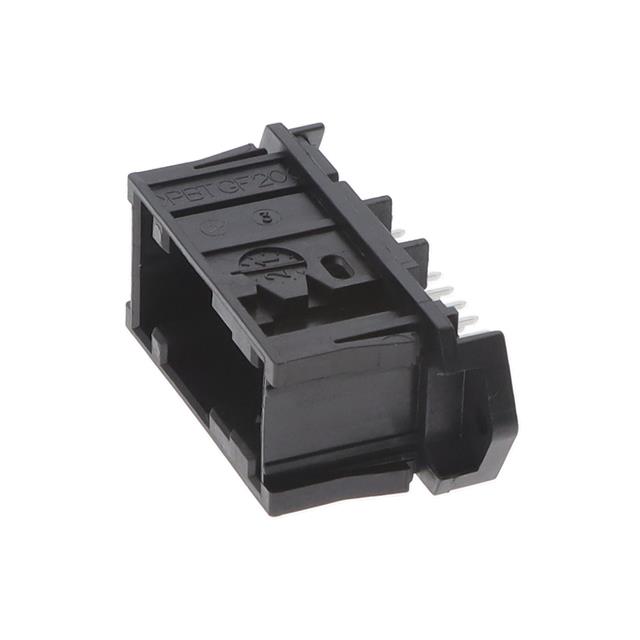

953302-1
18W MQS STRAIGHT HEADERManufacturer: TE Connectivity AMP Connectors
Categories: Headers, Male Pins
Quality Control: Learn More
Connector Header Panel Mount, Through Hole, Right Angle 18 position 0.100"" (2.54mm)
Additional Information
Series: Micro QuadlokRoHS Status: Request inventory verificationManufacturer Lead Time: 20 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | Guide Pin |
| Packaging | Box |
| Connector Type | Header |
| Voltage Rating | 12VDC |
| Current Rating (Amps) | - |
| Mounting Type | Panel Mount, Through Hole, Right Angle |
| Number of Positions | 18 |
| Number of Rows | 2 |
| Style | Board to Board |
| Operating Temperature | -40°C ~ 85°C |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Copper Alloy |
| Insulation Color | Black |
| Pitch - Mating | 0.100"" (2.54mm) |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin |
| Contact Shape | Circular |
| Contact Length - Post | 0.138"" (3.50mm) |
| Insulation Height | 0.799"" (20.30mm) |
| Shrouding | Shrouded - 4 Wall |
| Overall Contact Length | - |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Row Spacing - Mating | 0.100"" (2.54mm) |
| Contact Length - Mating | - |
