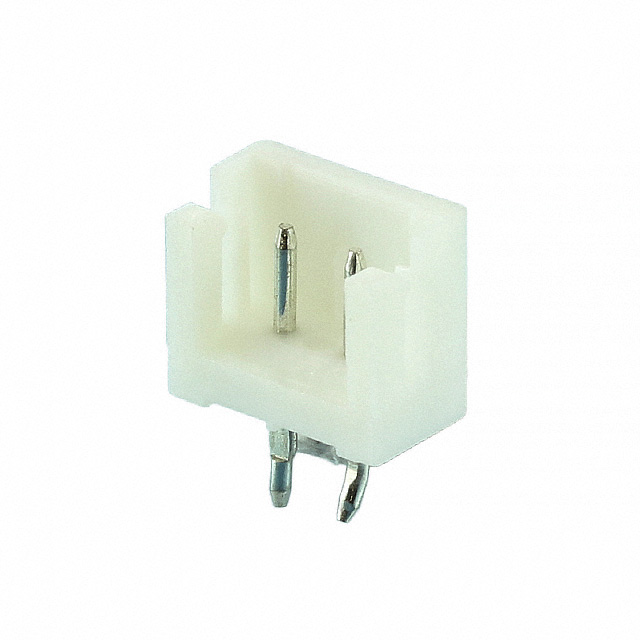

92008-2
CONN HEADER VERT 2POS 2.5MMManufacturer: TE Connectivity AMP Connectors
Categories: Headers, Male Pins
Quality Control: Learn More
TE Connectivity AMP Connectors 92008-2 is a 2-position, unshrouded header with a 2.50mm pitch. This through-hole component features male pin contacts made of brass with a tin plating. The insulation, constructed from Polyamide (PA) and Nylon, is UL94 V-0 flammability rated and white in color. The header utilizes a locking ramp for secure mating and has kinked pin termination for solder application. Its post contact length is 0.130 inches (3.30mm) and the insulation height is 0.255 inches (6.48mm). This component is commonly found in industrial automation and consumer electronics applications, supporting board-to-cable or wire connections. It is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: Vendor undefinedManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Header |
| Voltage Rating | - |
| Current Rating (Amps) | - |
| Mounting Type | Through Hole |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Style | Board to Cable/Wire |
| Operating Temperature | - |
| Contact Type | Male Pin |
| Fastening Type | Locking Ramp |
| Number of Positions Loaded | All |
| Termination | Kinked Pin, Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Brass |
| Insulation Color | White |
| Pitch - Mating | 0.098"" (2.50mm) |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin |
| Contact Shape | Circular |
| Contact Length - Post | 0.130"" (3.30mm) |
| Insulation Height | 0.255"" (6.48mm) |
| Shrouding | Unshrouded |
| Overall Contact Length | - |
| Insulation Material | Polyamide (PA), Nylon |
| Row Spacing - Mating | - |
| Contact Length - Mating | - |
