917788-1
CONN HEADER VERT 10POS 2.5MMManufacturer: TE Connectivity AMP Connectors
Categories: Headers, Male Pins
Quality Control: Learn More
Connector Header Through Hole 10 position 0.098"" (2.50mm)
Additional Information
Series: Signal Double LockRoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Guide |
| Packaging | Bulk |
| Connector Type | Header |
| Voltage Rating | 50V |
| Current Rating (Amps) | 3A |
| Mounting Type | Through Hole |
| Number of Positions | 10 |
| Number of Rows | 1 |
| Style | Board to Cable/Wire |
| Operating Temperature | -30°C ~ 105°C |
| Contact Type | Male Pin |
| Fastening Type | Latch Holder |
| Number of Positions Loaded | All |
| Termination | Kinked Pin, Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Copper Alloy |
| Insulation Color | Natural |
| Pitch - Mating | 0.098"" (2.50mm) |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin |
| Contact Shape | Square |
| Contact Length - Post | 0.126"" (3.20mm) |
| Insulation Height | 0.386"" (9.80mm) |
| Shrouding | Shrouded - 4 Wall |
| Overall Contact Length | 0.410"" (10.41mm) |
| Insulation Material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Row Spacing - Mating | - |
| Contact Length - Mating | 0.185"" (4.70mm) |
Request a Quote
Clients Also Buy
917897-1
CONN HEADER VERT 5POS 2.5MM

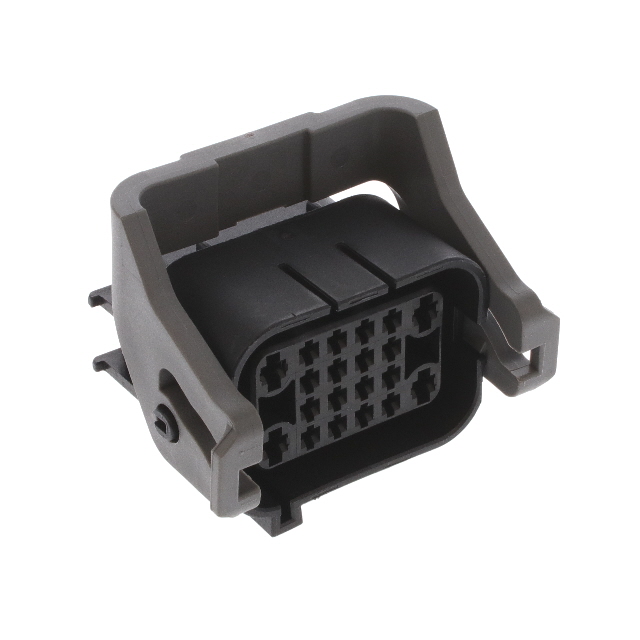

936777-2
