9-103801-0-04

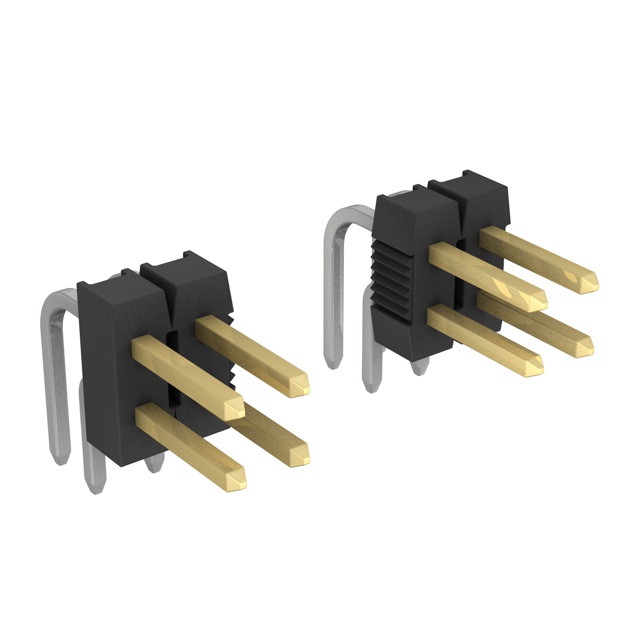

CONN HEADER R/A 8POS 2.54MMManufacturer: TE Connectivity AMP Connectors
Categories: Headers, Male Pins
Quality Control: Learn More
Connector Header Through Hole, Right Angle 8 position 0.100"" (2.54mm)
Additional Information
Series: AMPMODU Mod IIRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Header, Breakaway |
| Voltage Rating | - |
| Current Rating (Amps) | 3A |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 8 |
| Number of Rows | 2 |
| Style | Board to Board or Cable |
| Operating Temperature | -65°C ~ 105°C |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Copper Alloy |
| Insulation Color | Black |
| Pitch - Mating | 0.100"" (2.54mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin |
| Contact Shape | Square |
| Contact Length - Post | 0.090"" (2.29mm) |
| Insulation Height | 0.238"" (6.05mm) |
| Shrouding | Unshrouded |
| Overall Contact Length | - |
| Insulation Material | Thermoplastic |
| Row Spacing - Mating | 0.100"" (2.54mm) |
| Contact Length - Mating | 0.230"" (5.84mm) |
