9-103323-0

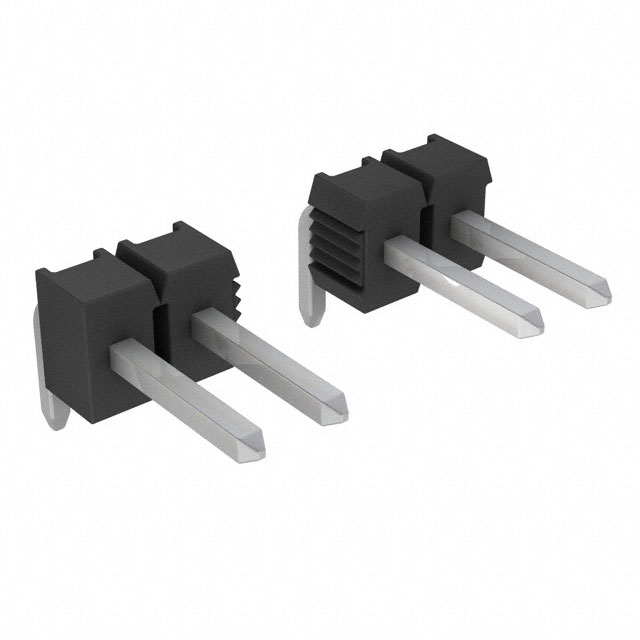

CONN HEADER R/A 40POS 2.54MMManufacturer: TE Connectivity AMP Connectors
Categories: Headers, Male Pins
Quality Control: Learn More
Connector Header Through Hole, Right Angle 40 position 0.100"" (2.54mm)
Additional Information
Series: AMPMODU Mod IIRoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Header, Breakaway |
| Voltage Rating | - |
| Current Rating (Amps) | 3A |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 40 |
| Number of Rows | 1 |
| Style | Board to Board or Cable |
| Operating Temperature | -65°C ~ 105°C |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Copper Alloy |
| Insulation Color | Black |
| Pitch - Mating | 0.100"" (2.54mm) |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | 100.0µin (2.54µm) |
| Contact Finish - Post | Tin |
| Contact Shape | Square |
| Contact Length - Post | 0.110"" (2.79mm) |
| Insulation Height | 0.138"" (3.50mm) |
| Shrouding | Unshrouded |
| Overall Contact Length | - |
| Insulation Material | Thermoplastic |
| Row Spacing - Mating | - |
| Contact Length - Mating | 0.318"" (8.08mm) |
