87589-4
CONN HEADER VERT 16POS 2.54MMManufacturer: TE Connectivity AMP Connectors
Categories: Headers, Male Pins
Quality Control: Learn More

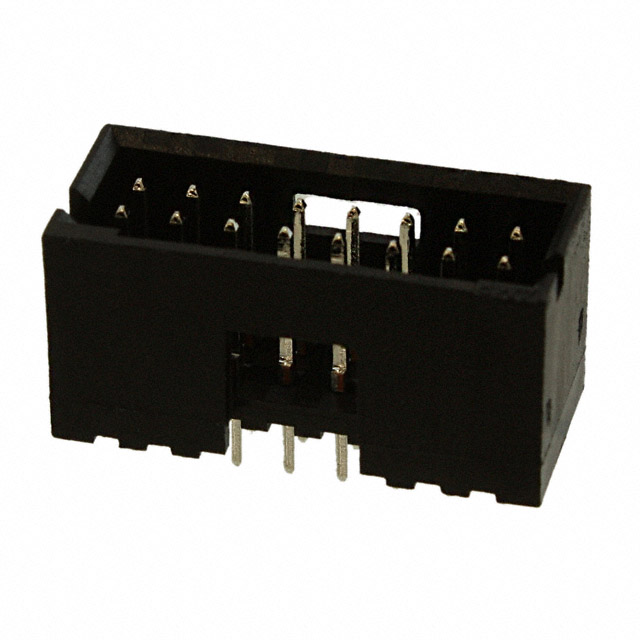

TE Connectivity AMP Connectors AMPMODU Mod II 87589-4 is a shrouded header with 16 positions arranged in two rows. This through-hole component features a 2.54mm pitch for mating and row spacing. The male pin contacts, made from phosphor bronze, have a square shape and are plated with tin-lead for mating surfaces and tin on the posts, with mating contact thickness of 100.0µin (2.54µm). The header has a current rating of 3A and an operating temperature range of -65°C to 105°C. Constructed with a glass-filled polyamide insulation material, it meets UL94 V-0 flammability rating and is designed for board-to-board or cable applications with a detent lock fastening type. This component is commonly utilized in industrial automation, consumer electronics, and automotive applications.
Additional Information
Series: AMPMODU Mod IIRoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Connector Type | Header |
| Voltage Rating | - |
| Current Rating (Amps) | 3A |
| Mounting Type | Through Hole |
| Number of Positions | 16 |
| Number of Rows | 2 |
| Style | Board to Board or Cable |
| Operating Temperature | -65°C ~ 105°C |
| Contact Type | Male Pin |
| Fastening Type | Detent Lock |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Phosphor Bronze |
| Insulation Color | Black |
| Pitch - Mating | 0.100"" (2.54mm) |
| Contact Finish - Mating | Tin-Lead |
| Contact Finish Thickness - Mating | 100.0µin (2.54µm) |
| Contact Finish - Post | Tin |
| Contact Shape | Square |
| Contact Length - Post | 0.125"" (3.18mm) |
| Insulation Height | 0.440"" (11.18mm) |
| Shrouding | Shrouded - 4 Wall |
| Overall Contact Length | 0.533"" (13.55mm) |
| Insulation Material | Polyamide (PA), Nylon, Glass Filled |
| Row Spacing - Mating | 0.100"" (2.54mm) |
| Contact Length - Mating | 0.318"" (8.08mm) |
