87589-1

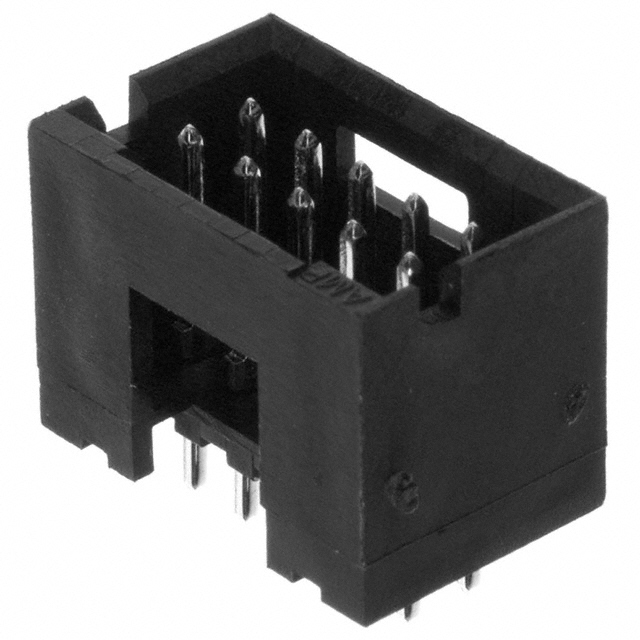

CONN HEADER VERT 10POS 2.54MMManufacturer: TE Connectivity AMP Connectors
Categories: Headers, Male Pins
Quality Control: Learn More
TE Connectivity AMP Connectors AMPMODU Mod II Series header, part number 87589-1, is a shrouded, 10-position, 2-row male pin connector designed for through-hole mounting. This header features a 0.100" (2.54mm) pitch and row spacing, with a 3A current rating. The phosphor bronze contacts are plated with tin-lead for mating and tin for the post, offering a mating contact length of 0.318" (8.08mm) and a post contact length of 0.125" (3.18mm). The black polyamide insulation, reinforced with glass fill, meets UL94 V-0 flammability rating and provides an insulation height of 0.440" (11.18mm). This component is suitable for board-to-board or cable applications and operates within a temperature range of -65°C to 105°C. It is commonly utilized in industrial automation, automotive, and consumer electronics sectors.
Additional Information
Series: AMPMODU Mod IIRoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Connector Type | Header |
| Voltage Rating | - |
| Current Rating (Amps) | 3A |
| Mounting Type | Through Hole |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Style | Board to Board or Cable |
| Operating Temperature | -65°C ~ 105°C |
| Contact Type | Male Pin |
| Fastening Type | Detent Lock |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Phosphor Bronze |
| Insulation Color | Black |
| Pitch - Mating | 0.100"" (2.54mm) |
| Contact Finish - Mating | Tin-Lead |
| Contact Finish Thickness - Mating | 100.0µin (2.54µm) |
| Contact Finish - Post | Tin |
| Contact Shape | Square |
| Contact Length - Post | 0.125"" (3.18mm) |
| Insulation Height | 0.440"" (11.18mm) |
| Shrouding | Shrouded - 4 Wall |
| Overall Contact Length | 0.533"" (13.55mm) |
| Insulation Material | Polyamide (PA), Nylon, Glass Filled |
| Row Spacing - Mating | 0.100"" (2.54mm) |
| Contact Length - Mating | 0.318"" (8.08mm) |
