87234-9
CONN HEADER R/A 10POS 3.18MMManufacturer: TE Connectivity AMP Connectors
Categories: Headers, Male Pins
Quality Control: Learn More

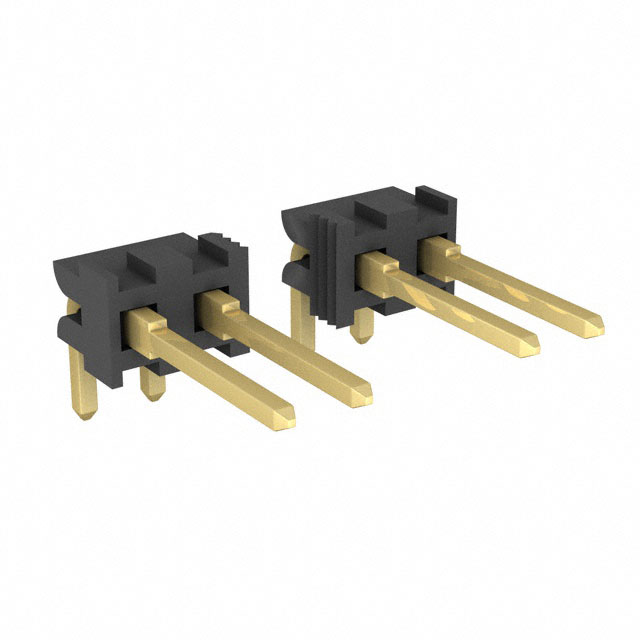

TE Connectivity AMP Connectors AMPMODU Mod II series 87234-9 is a 10-position, unshrouded, right-angle header designed for through-hole mounting. Featuring a 0.125" (3.18mm) pitch, this connector utilizes male pin contacts made from phosphor bronze with gold plating for both mating and post connections, offering a mating contact finish thickness of 30.0µin (0.76µm). The polyamide (PA), nylon, glass-filled insulation is black and has a height of 0.138" (3.50mm). With a current rating of 3A and a termination style of solder, this component is suitable for board-to-board or cable applications. It operates within a temperature range of -65°C to 105°C and employs a push-pull fastening type. This header is commonly found in industrial automation, telecommunications, and consumer electronics.
Additional Information
Series: AMPMODU Mod IIRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Header |
| Voltage Rating | - |
| Current Rating (Amps) | 3A |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 10 |
| Number of Rows | 1 |
| Style | Board to Board or Cable |
| Operating Temperature | -65°C ~ 105°C |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | - |
| Contact Material | Phosphor Bronze |
| Insulation Color | Black |
| Pitch - Mating | 0.125"" (3.18mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Gold |
| Contact Shape | Square |
| Contact Length - Post | 0.110"" (2.79mm) |
| Insulation Height | 0.138"" (3.50mm) |
| Shrouding | Unshrouded |
| Overall Contact Length | - |
| Insulation Material | Polyamide (PA), Nylon, Glass Filled |
| Row Spacing - Mating | - |
| Contact Length - Mating | 0.318"" (8.08mm) |
