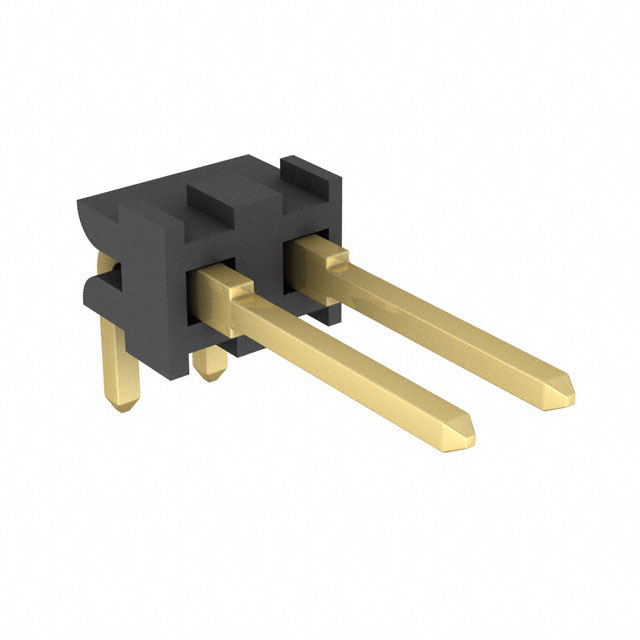

87233-2
CONN HEADER R/A 2POS 2.54MMManufacturer: TE Connectivity AMP Connectors
Categories: Headers, Male Pins
Quality Control: Learn More
TE Connectivity AMP Connectors, AMPMODU Mod II series, part number 87233-2. This right-angle, through-hole mounted header features 2 positions with a 0.100" (2.54mm) pitch. It utilizes phosphor bronze contacts with gold plating (15.0µin) for both mating and post interfaces, ensuring reliable conductivity. The male pin contact shape is square. The thermoplastic insulation, rated UL94 V-0, is black and has an insulation height of 0.138" (3.50mm). Designed for solder termination, this unshrouded connector has a current rating of 3A and an operating temperature range of -65°C to 105°C. Its style supports board-to-board or cable connections, finding application in telecommunications, industrial automation, and consumer electronics.
Additional Information
Series: AMPMODU Mod IIRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Header |
| Voltage Rating | - |
| Current Rating (Amps) | 3A |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Style | Board to Board or Cable |
| Operating Temperature | -65°C ~ 105°C |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Phosphor Bronze |
| Insulation Color | Black |
| Pitch - Mating | 0.100"" (2.54mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 15.0µin (0.38µm) |
| Contact Finish - Post | Gold |
| Contact Shape | Square |
| Contact Length - Post | 0.110"" (2.79mm) |
| Insulation Height | 0.138"" (3.50mm) |
| Shrouding | Unshrouded |
| Overall Contact Length | - |
| Insulation Material | Thermoplastic |
| Row Spacing - Mating | - |
| Contact Length - Mating | 0.318"" (8.08mm) |
