8-917541-2

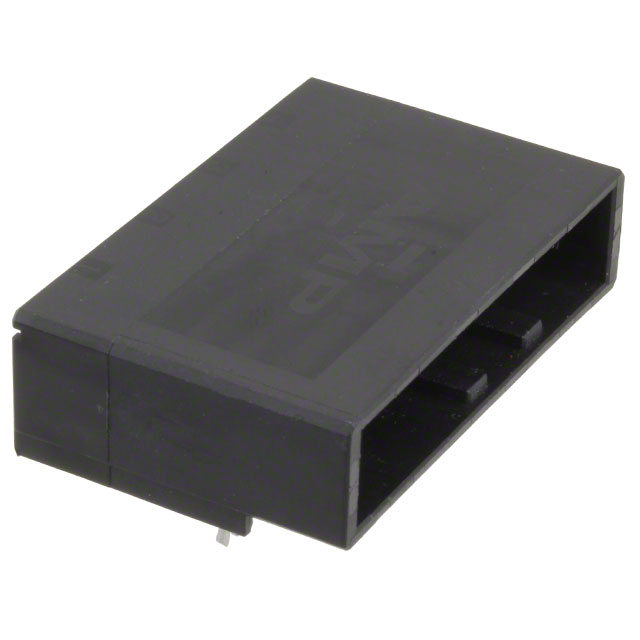

CONN HEADER R/A 4POS 10.16MMManufacturer: TE Connectivity AMP Connectors
Categories: Headers, Male Pins
Quality Control: Learn More
Connector Header Through Hole, Right Angle 4 position 0.400"" (10.16mm)
Additional Information
Series: Dynamic D-5200RoHS Status: ROHS3 CompliantManufacturer Lead Time: 17 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Lock |
| Packaging | Tube |
| Connector Type | Header |
| Voltage Rating | 630V |
| Current Rating (Amps) | 30A |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Style | Board to Cable/Wire |
| Operating Temperature | -55°C ~ 105°C |
| Contact Type | Tab |
| Fastening Type | Detent Lock |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | IP20 |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Copper Alloy |
| Insulation Color | Black |
| Pitch - Mating | 0.400"" (10.16mm) |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin |
| Contact Shape | Rectangular |
| Contact Length - Post | 0.150"" (3.81mm) |
| Insulation Height | 0.547"" (13.90mm) |
| Shrouding | Shrouded - 4 Wall |
| Overall Contact Length | - |
| Insulation Material | Thermoplastic, Polyester, Glass Filled |
| Row Spacing - Mating | - |
| Contact Length - Mating | - |
