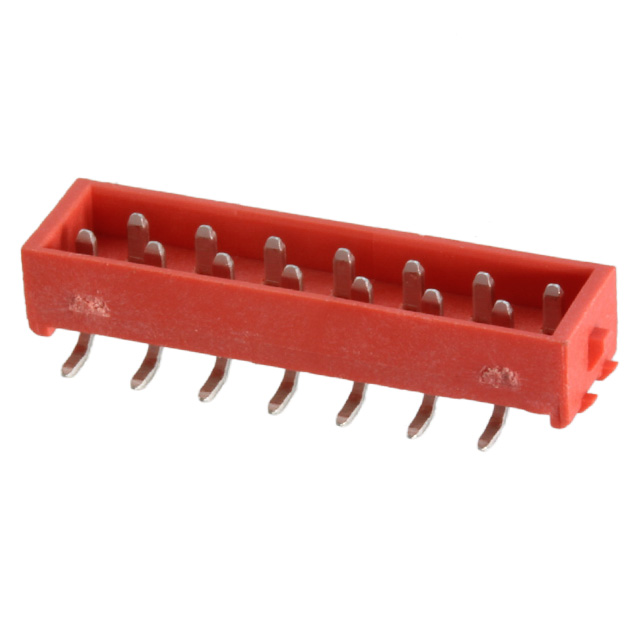

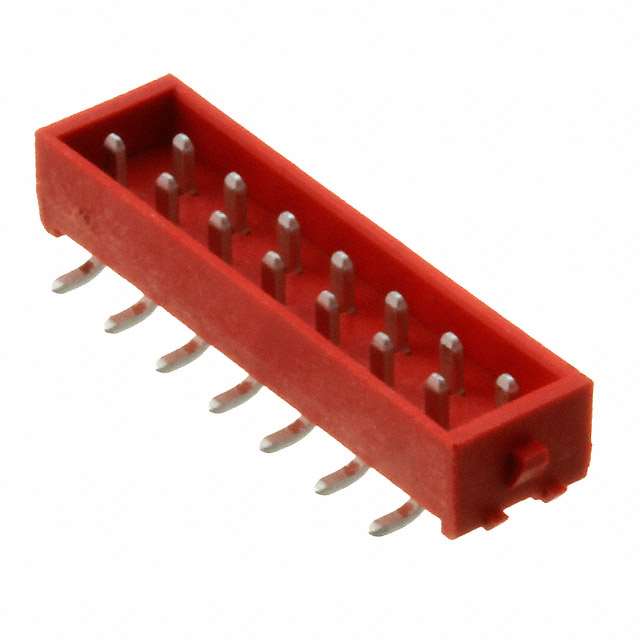

8-338728-4
CONN HEADER SMD 14POS 2.54MMManufacturer: TE Connectivity AMP Connectors
Categories: Headers, Male Pins
Quality Control: Learn More
Connector Header Surface Mount 14 position 0.100"" (2.54mm)
Additional Information
Series: Micro-MaTchRoHS Status: Request inventory verificationManufacturer Lead Time: 47 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Pick and Place |
| Packaging | Tape & Reel (TR) |
| Connector Type | Header |
| Voltage Rating | 230V |
| Current Rating (Amps) | 1.5A |
| Mounting Type | Surface Mount |
| Number of Positions | 14 |
| Number of Rows | 2 |
| Style | Board to Board or Cable |
| Operating Temperature | -40°C ~ 105°C |
| Contact Type | Male Pin |
| Fastening Type | Latch Lock |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Brass |
| Insulation Color | Red |
| Pitch - Mating | 0.100"" (2.54mm) |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | 118.1µin (3.00µm) |
| Contact Finish - Post | Tin |
| Contact Shape | Rectangular |
| Contact Length - Post | - |
| Insulation Height | 0.181"" (4.60mm) |
| Shrouding | Shrouded - 4 Wall |
| Overall Contact Length | - |
| Insulation Material | Polyamide (PA46), Nylon 4/6, Glass Filled |
| Row Spacing - Mating | - |
| Contact Length - Mating | - |
Request a Quote
Clients Also Buy
1-100400-6
CONN RCPT 16POS 0.1 TIN PCB R/A

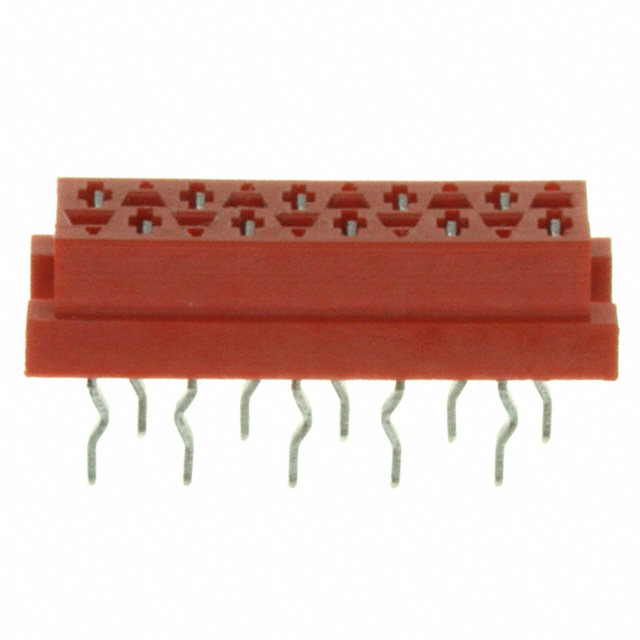

1-215079-0
CONN RCPT 10POS 0.1 TIN PCB

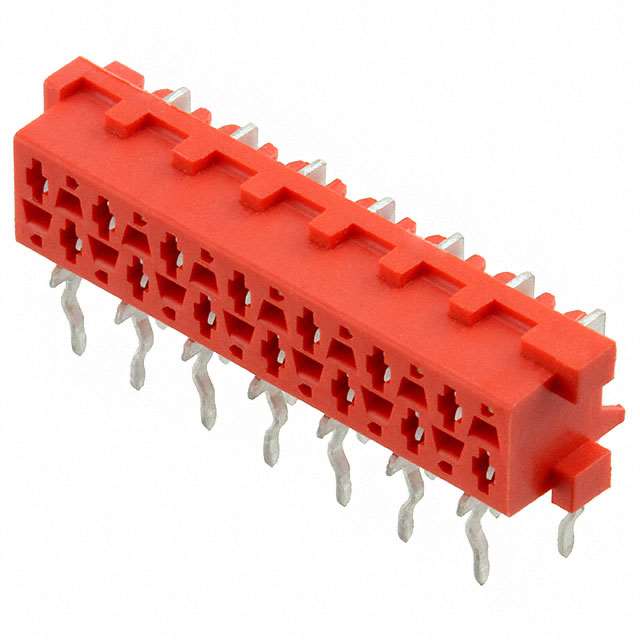

1-215460-4
