8-1734508-0

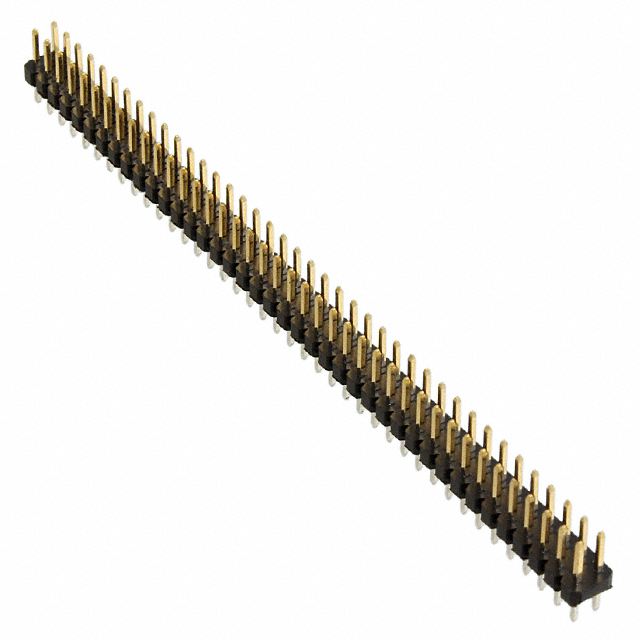

CONN HEADER VERT 80POS 2MM

Manufacturer: TE Connectivity AMP Connectors

Categories: Headers, Male Pins

Quality Control: Learn More

Connector Header Through Hole 80 position 0.079"" (2.00mm)

Additional Information

Series: AMPMODURoHS Status: ROHS3 CompliantManufacturer Lead Time: 17 week(s)Product Status: ActivePackaging: BulkDatasheet:
Technical Details:
Features-
PackagingBulk
Connector TypeHeader, Breakaway
Voltage Rating250VAC
Current Rating (Amps)1A
Mounting TypeThrough Hole
Number of Positions80
Number of Rows2
StyleBoard to Board or Cable
Operating Temperature-40°C ~ 105°C
Contact TypeMale Pin
Fastening TypePush-Pull
Number of Positions LoadedAll
TerminationSolder
Ingress Protection-
Material Flammability RatingUL94 V-0
Contact MaterialBrass
Insulation ColorBlack
Pitch - Mating0.079"" (2.00mm)
Contact Finish - MatingGold
Contact Finish Thickness - Mating8.00µin (0.203µm)
Contact Finish - PostTin
Contact ShapeSquare
Contact Length - Post0.102"" (2.60mm)
Insulation Height0.059"" (1.50mm)
ShroudingUnshrouded
Overall Contact Length0.319"" (8.10mm)
Insulation MaterialPolyamide (PA6T), Nylon 6T, Glass Filled
Row Spacing - Mating0.079"" (2.00mm)
Contact Length - Mating0.157"" (4.00mm)
