794637-2

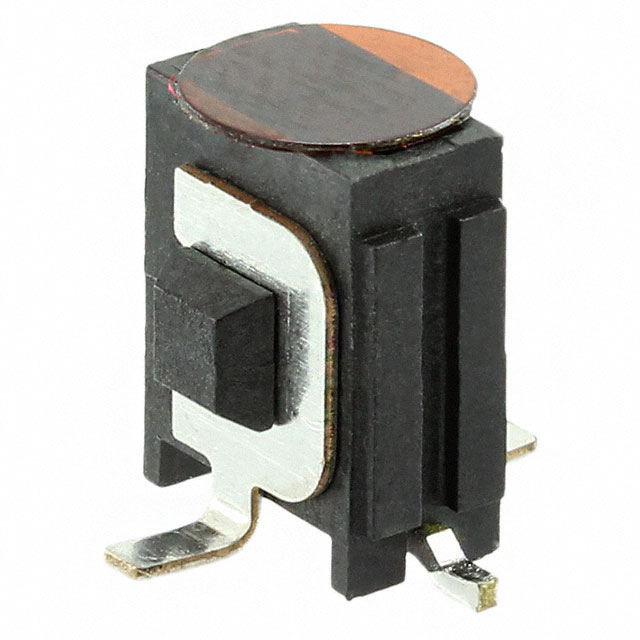

CONN HEADER SMD 2POSManufacturer: TE Connectivity AMP Connectors
Categories: Headers, Male Pins
Quality Control: Learn More
TE Connectivity AMP Connectors Micro MATE-N-LOK Series connector header, part number 794637-2, is a 2-position, surface mount device with a shrouded, 4-wall design. This header features male pin contacts made of brass with a square shape. The mating contacts offer a gold finish with a thickness of 15.0µin (0.38µm), while the post termination utilizes a tin-lead finish. The polyamide (PA), nylon insulation has a UL94 V-0 flammability rating and stands 0.364" (9.25mm) high. Designed for board-to-cable/wire applications, this component operates within a temperature range of -40°C to 105°C and has a voltage rating of 250V. The header includes a locking ramp for secure mating and solder retention features for reliable termination. This component is commonly found in industrial automation and consumer electronics applications.
Additional Information
Series: Micro MATE-N-LOKRoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Solder Retention |
| Packaging | Bulk |
| Connector Type | Header |
| Voltage Rating | 250V |
| Current Rating (Amps) | Varies by Wire Gauge |
| Mounting Type | Surface Mount |
| Number of Positions | 2 |
| Number of Rows | 2 |
| Style | Board to Cable/Wire |
| Operating Temperature | -40°C ~ 105°C |
| Contact Type | Male Pin |
| Fastening Type | Locking Ramp |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Brass |
| Insulation Color | Black |
| Pitch - Mating | - |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 15.0µin (0.38µm) |
| Contact Finish - Post | Tin-Lead |
| Contact Shape | Square |
| Contact Length - Post | - |
| Insulation Height | 0.364"" (9.25mm) |
| Shrouding | Shrouded - 4 Wall |
| Overall Contact Length | - |
| Insulation Material | Polyamide (PA), Nylon |
| Row Spacing - Mating | 0.118"" (3.00mm) |
| Contact Length - Mating | - |
