794630-6
CONN HEADER VERT 6POS 3MMManufacturer: TE Connectivity AMP Connectors
Categories: Headers, Male Pins
Quality Control: Learn More

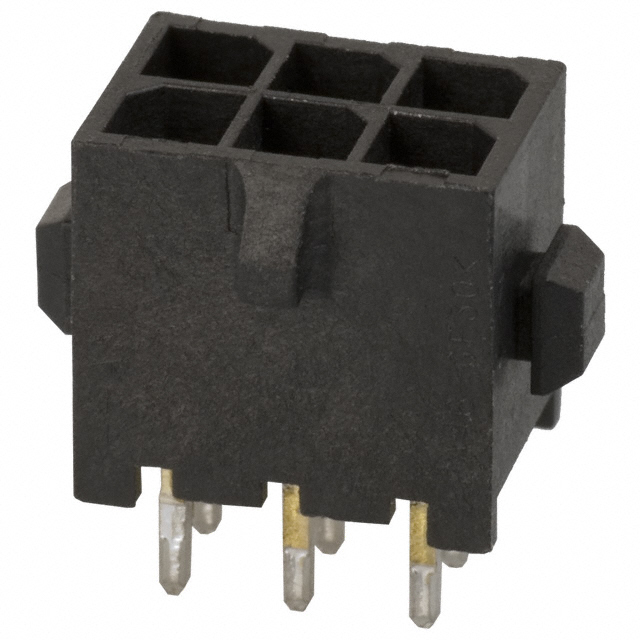

TE Connectivity AMP Connectors Micro MATE-N-LOK series 794630-6 is a shrouded header with a 6-position configuration and a 3.00mm pitch. This through-hole mounted component features brass male pins with tin-lead plating, offering a mating contact finish thickness of 2.54µm. The header's polyamide insulation, rated UL94 V-0, provides a 9.25mm insulation height. Designed for board-to-cable/wire applications, it supports a voltage rating of 250V and operates within a temperature range of -40°C to 105°C. Termination options include press-fit and solder. This component is commonly found in automotive and industrial automation applications. Supplied in tray packaging.
Additional Information
Series: Micro MATE-N-LOKRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Connector Type | Header |
| Voltage Rating | 250V |
| Current Rating (Amps) | Varies by Wire Gauge |
| Mounting Type | Through Hole |
| Number of Positions | 6 |
| Number of Rows | 2 |
| Style | Board to Cable/Wire |
| Operating Temperature | -40°C ~ 105°C |
| Contact Type | Male Pin |
| Fastening Type | Locking Ramp |
| Number of Positions Loaded | All |
| Termination | Press-Fit, Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Brass |
| Insulation Color | Black |
| Pitch - Mating | 0.118"" (3.00mm) |
| Contact Finish - Mating | Tin-Lead |
| Contact Finish Thickness - Mating | 100.0µin (2.54µm) |
| Contact Finish - Post | Tin-Lead |
| Contact Shape | Square |
| Contact Length - Post | 0.125"" (3.18mm) |
| Insulation Height | 0.364"" (9.25mm) |
| Shrouding | Shrouded - 4 Wall |
| Overall Contact Length | - |
| Insulation Material | Polyamide (PA), Nylon |
| Row Spacing - Mating | 0.118"" (3.00mm) |
| Contact Length - Mating | - |
