794627-6

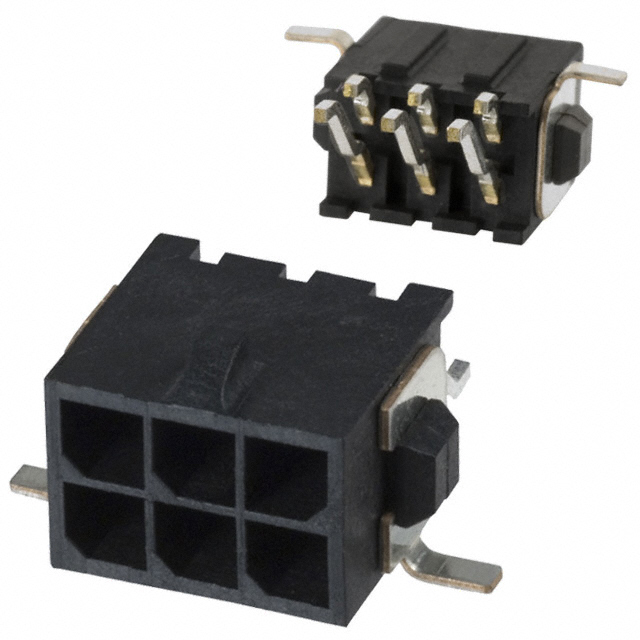

CONN HEADER SMD R/A 6POS 3MMManufacturer: TE Connectivity AMP Connectors
Categories: Headers, Male Pins
Quality Control: Learn More
The TE Connectivity AMP Connectors Micro MATE-N-LOK series connector, part number 794627-6, is a 6-position, shrouded, right-angle surface-mount header. This component features a 3.00mm pitch and utilizes brass contacts with a tin-lead plating for reliable mating. Designed for robust connections, it incorporates a locking ramp for secure assembly and solder retention features. The header's polyamide insulation is rated UL94 V-0 and operates within a temperature range of -40°C to 105°C. This connector is suitable for applications requiring a 250V voltage rating, commonly found in industrial automation, consumer electronics, and automotive systems. Supplied on tape and reel for automated assembly processes.
Additional Information
Series: Micro MATE-N-LOKRoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Solder Retention |
| Packaging | Tape & Reel (TR) |
| Connector Type | Header |
| Voltage Rating | 250V |
| Current Rating (Amps) | Varies by Wire Gauge |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 6 |
| Number of Rows | 2 |
| Style | Board to Cable/Wire |
| Operating Temperature | -40°C ~ 105°C |
| Contact Type | Male Pin |
| Fastening Type | Locking Ramp |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Brass |
| Insulation Color | Black |
| Pitch - Mating | 0.118"" (3.00mm) |
| Contact Finish - Mating | Tin-Lead |
| Contact Finish Thickness - Mating | 100.0µin (2.54µm) |
| Contact Finish - Post | Tin-Lead |
| Contact Shape | Square |
| Contact Length - Post | - |
| Insulation Height | 0.290"" (7.37mm) |
| Shrouding | Shrouded - 4 Wall |
| Overall Contact Length | - |
| Insulation Material | Polyamide (PA), Nylon |
| Row Spacing - Mating | 0.118"" (3.00mm) |
| Contact Length - Mating | - |
