794620-6

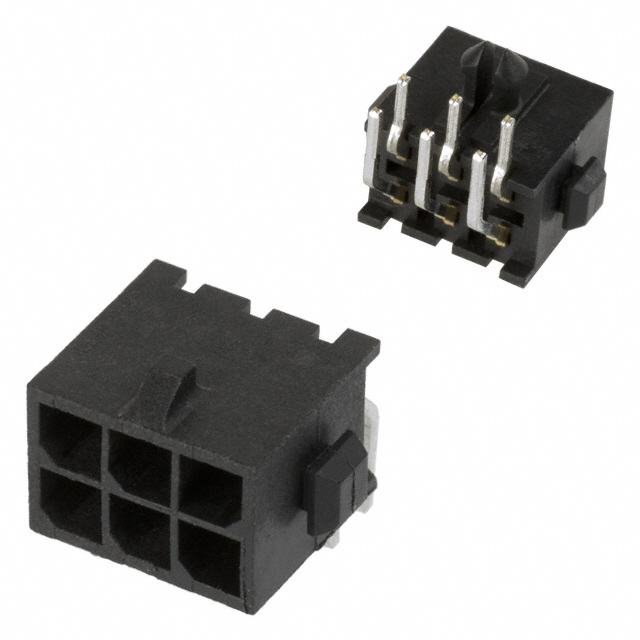

CONN HEADER R/A 6POS 3MMManufacturer: TE Connectivity AMP Connectors
Categories: Headers, Male Pins
Quality Control: Learn More
TE Connectivity AMP Connectors Micro MATE-N-LOK series offers a 6-position, right-angle PCB header with a 3.00mm pitch. This shrouded header features male pin contacts made from brass with gold plating on the mating end, measuring 0.76µm thick, and tin-lead plating on the post. The polyamide insulation, rated UL94 V-0, provides a black housing with a board lock feature for secure mounting. Designed for through-hole termination with solder, this header supports a 250V voltage rating and operates within a temperature range of -40°C to 105°C. It is suitable for applications requiring board-to-cable connections in industries such as automotive, industrial automation, and consumer electronics.
Additional Information
Series: Micro MATE-N-LOKRoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Lock |
| Packaging | Tray |
| Connector Type | Header |
| Voltage Rating | 250V |
| Current Rating (Amps) | Varies by Wire Gauge |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 6 |
| Number of Rows | 2 |
| Style | Board to Cable/Wire |
| Operating Temperature | -40°C ~ 105°C |
| Contact Type | Male Pin |
| Fastening Type | Locking Ramp |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Brass |
| Insulation Color | Black |
| Pitch - Mating | 0.118"" (3.00mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin-Lead |
| Contact Shape | Square |
| Contact Length - Post | - |
| Insulation Height | 0.290"" (7.37mm) |
| Shrouding | Shrouded - 4 Wall |
| Overall Contact Length | - |
| Insulation Material | Polyamide (PA), Nylon |
| Row Spacing - Mating | 0.118"" (3.00mm) |
| Contact Length - Mating | - |
