794619-4
CONN HEADER R/A 4POS 3MMManufacturer: TE Connectivity AMP Connectors
Categories: Headers, Male Pins
Quality Control: Learn More

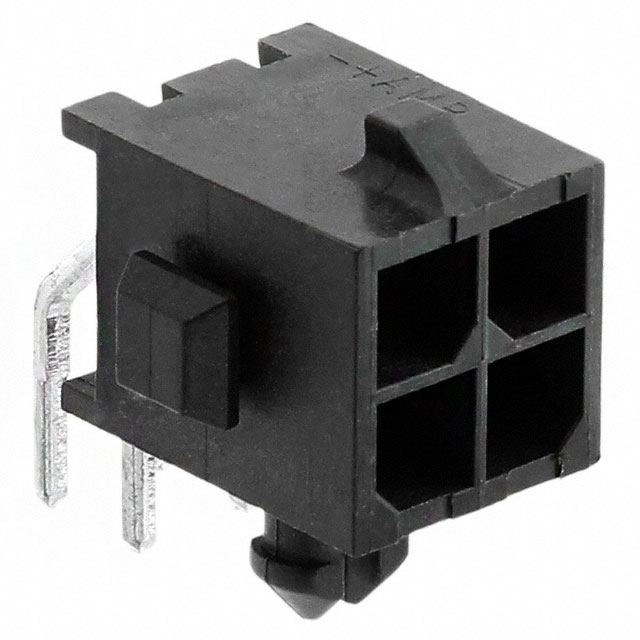

TE Connectivity AMP Connectors Micro MATE-N-LOK series right-angle header, part number 794619-4. This shrouded, 4-position connector features a 3.00mm pitch and is designed for through-hole mounting onto PCBs. The brass contacts are square in shape, with mating contacts finished in gold plating at 15.0µin (0.38µm) for enhanced conductivity, and post contacts finished in tin-lead. The header's polyamide (PA) insulation, rated UL94 V-0, is black and features a board lock for secure mounting. Operating within a temperature range of -40°C to 105°C, this component is suitable for applications in automotive, industrial control, and consumer electronics markets. The connector style is board to cable/wire, with solder termination.
Additional Information
Series: Micro MATE-N-LOKRoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Lock |
| Packaging | Tray |
| Connector Type | Header |
| Voltage Rating | 250V |
| Current Rating (Amps) | Varies by Wire Gauge |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 4 |
| Number of Rows | 2 |
| Style | Board to Cable/Wire |
| Operating Temperature | -40°C ~ 105°C |
| Contact Type | Male Pin |
| Fastening Type | Locking Ramp |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Brass |
| Insulation Color | Black |
| Pitch - Mating | 0.118"" (3.00mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 15.0µin (0.38µm) |
| Contact Finish - Post | Tin-Lead |
| Contact Shape | Square |
| Contact Length - Post | - |
| Insulation Height | 0.290"" (7.37mm) |
| Shrouding | Shrouded - 4 Wall |
| Overall Contact Length | - |
| Insulation Material | Polyamide (PA), Nylon |
| Row Spacing - Mating | 0.118"" (3.00mm) |
| Contact Length - Mating | - |
