CONN HEADER R/A 4POS 3MMManufacturer: TE Connectivity AMP Connectors
Categories: Headers, Male Pins
Quality Control: Learn More

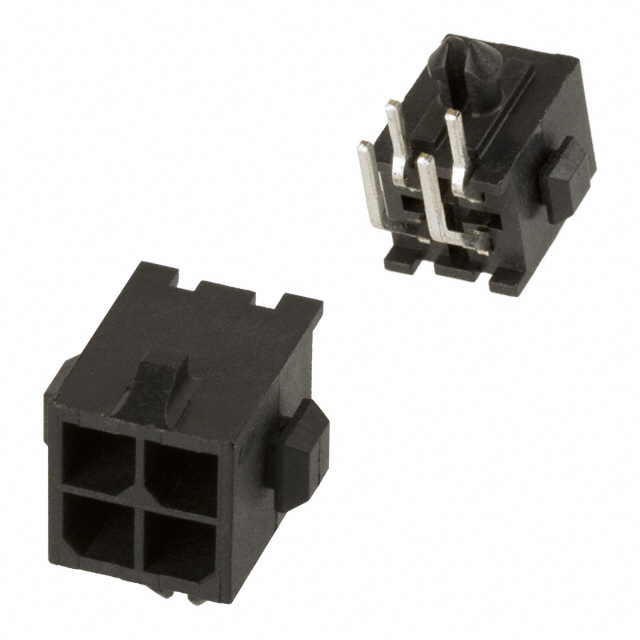

TE Connectivity AMP Connectors Micro MATE-N-LOK Series header, part number 794618-4, is a right-angle, through-hole mounted connector. This shrouded header features 4 positions with a 3.00mm pitch, designed for board-to-cable applications. It utilizes brass male pin contacts with a tin-lead finish, offering a 2.54µm plating thickness for mating. The polyamide (PA), nylon insulation is UL94 V-0 rated and colored black, with an insulation height of 7.37mm. Key features include a locking ramp for secure mating and integrated board lock functionality. Operating within a temperature range of -40°C to 105°C, this header is suitable for demanding applications in industrial automation, automotive, and consumer electronics. Termination is achieved via solder.
Additional Information
Series: Micro MATE-N-LOKRoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Lock |
| Packaging | Tray |
| Connector Type | Header |
| Voltage Rating | 250V |
| Current Rating (Amps) | Varies by Wire Gauge |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 4 |
| Number of Rows | 2 |
| Style | Board to Cable/Wire |
| Operating Temperature | -40°C ~ 105°C |
| Contact Type | Male Pin |
| Fastening Type | Locking Ramp |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Brass |
| Insulation Color | Black |
| Pitch - Mating | 0.118"" (3.00mm) |
| Contact Finish - Mating | Tin-Lead |
| Contact Finish Thickness - Mating | 100.0µin (2.54µm) |
| Contact Finish - Post | Tin-Lead |
| Contact Shape | Square |
| Contact Length - Post | - |
| Insulation Height | 0.290"" (7.37mm) |
| Shrouding | Shrouded - 4 Wall |
| Overall Contact Length | - |
| Insulation Material | Polyamide (PA), Nylon |
| Row Spacing - Mating | 0.118"" (3.00mm) |
| Contact Length - Mating | - |
