794108-2
CONN HEADER R/A 24POS 4.14MMManufacturer: TE Connectivity AMP Connectors
Categories: Headers, Male Pins
Quality Control: Learn More

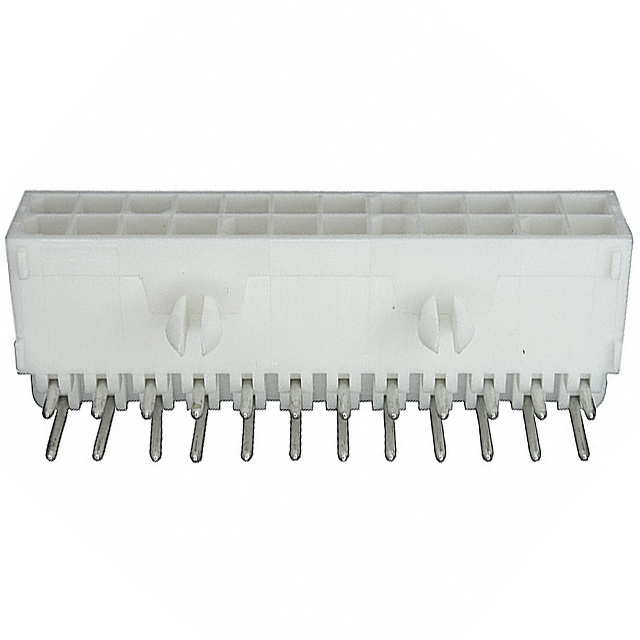

TE Connectivity AMP Connectors presents the Mini-Universal MATE-N-LOK series header, part number 794108-2. This right-angle, through-hole mounted connector features 24 positions with a 4.14mm pitch. The header is constructed with a white polyamide (PA) nylon insulation, rated UL94 V-0. Male pin circular contacts are made of brass, with gold plating on the mating surface (30.0µin) and tin-lead plating on the post. Key features include a locking ramp for secure mating and integrated board locks for enhanced retention. The contact post length is 3.68mm. This shrouded connector, with 2 rows and 4 walls, is suitable for board-to-cable/wire applications and operates within a temperature range of -20°C to 105°C, with a voltage rating of 600VAC. Its robust design finds application in industrial automation, automotive, and consumer electronics.
Additional Information
Series: Mini-Universal MATE-N-LOKRoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Lock |
| Packaging | Bulk |
| Connector Type | Header |
| Voltage Rating | 600VAC |
| Current Rating (Amps) | Varies by Wire Gauge |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 24 |
| Number of Rows | 2 |
| Style | Board to Cable/Wire |
| Operating Temperature | -20°C ~ 105°C |
| Contact Type | Male Pin |
| Fastening Type | Locking Ramp |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Brass |
| Insulation Color | White |
| Pitch - Mating | 0.163"" (4.14mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin-Lead |
| Contact Shape | Circular |
| Contact Length - Post | 0.145"" (3.68mm) |
| Insulation Height | 0.386"" (9.80mm) |
| Shrouding | Shrouded - 4 Wall |
| Overall Contact Length | - |
| Insulation Material | Polyamide (PA), Nylon |
| Row Spacing - Mating | 0.163"" (4.14mm) |
| Contact Length - Mating | - |
