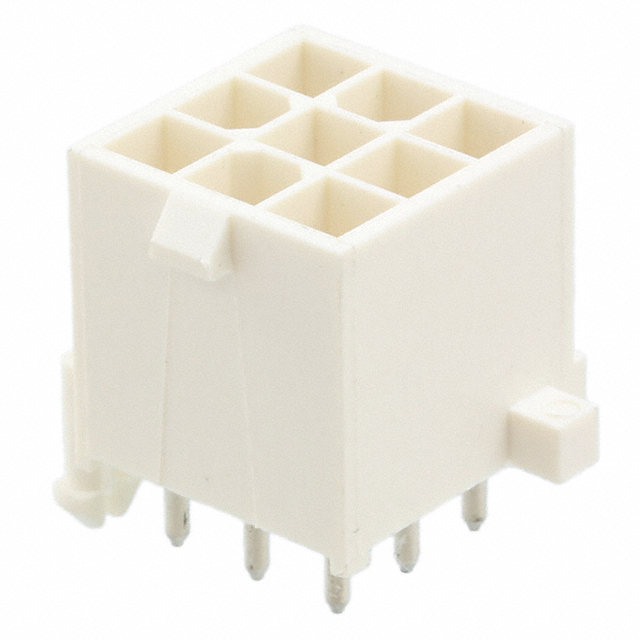

CONN HEADER VERT 9POS 4.14MM

Manufacturer: TE Connectivity AMP Connectors

Categories: Headers, Male Pins

Quality Control: Learn More

TE Connectivity AMP Connectors 770182-2 is a 9-position, shrouded header designed for through-hole mounting. This Mini-Universal MATE-N-LOK series component features a 0.163" (4.14mm) pitch and a 4-wall shroud for enhanced protection. The male pin contacts are constructed from brass with gold mating contact finish and tin-lead post finish, boasting a mating contact thickness of 30.0µin (0.76µm). The header has a 600VAC voltage rating and a current rating that varies by wire gauge. With a polyamide (PA), nylon insulation material and a UL94 V-0 flammability rating, it operates within a temperature range of -20°C to 105°C. The design includes a board lock feature and is suitable for board-to-cable/wire applications. This component finds utility in industrial automation, automotive, and appliance sectors.

Additional Information

Series: Mini-Universal MATE-N-LOKRoHS Status: Vendor undefinedManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:
Technical Details:
FeaturesBoard Lock
PackagingBulk
Connector TypeHeader
Voltage Rating600VAC
Current Rating (Amps)Varies by Wire Gauge
Mounting TypeThrough Hole
Number of Positions9
Number of Rows3
StyleBoard to Cable/Wire
Operating Temperature-20°C ~ 105°C
Contact TypeMale Pin
Fastening TypeLocking Ramp
Number of Positions LoadedAll
TerminationSolder
Ingress Protection-
Material Flammability RatingUL94 V-0
Contact MaterialBrass
Insulation ColorWhite
Pitch - Mating0.163"" (4.14mm)
Contact Finish - MatingGold
Contact Finish Thickness - Mating30.0µin (0.76µm)
Contact Finish - PostTin-Lead
Contact ShapeCircular
Contact Length - Post0.175"" (4.45mm)
Insulation Height0.531"" (13.50mm)
ShroudingShrouded - 4 Wall
Overall Contact Length-
Insulation MaterialPolyamide (PA), Nylon
Row Spacing - Mating0.163"" (4.14mm)
Contact Length - Mating-
