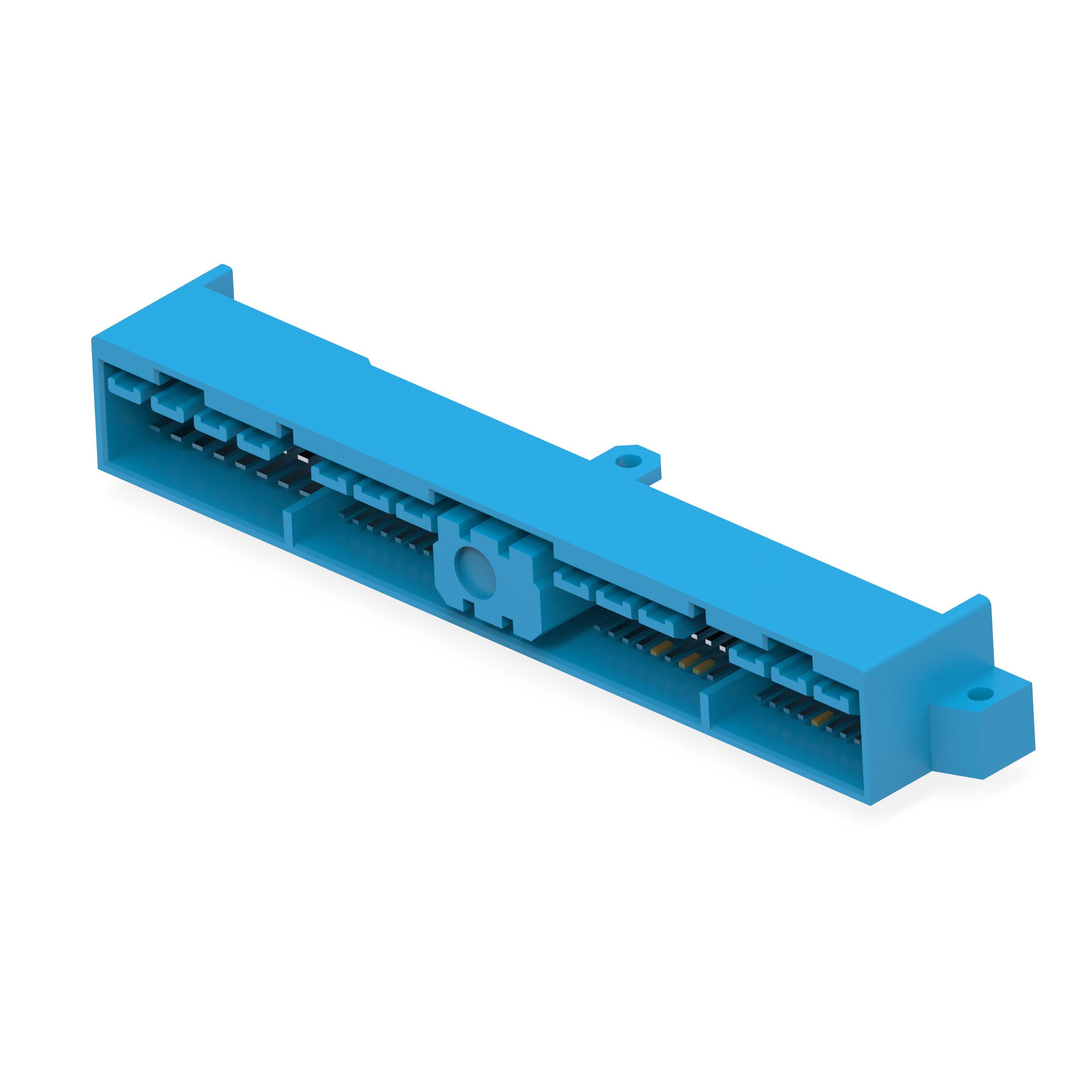

7-5174385-5
CAP ASSY 040 C.L.C. 76P BLUEManufacturer: TE Connectivity AMP Connectors
Categories: Headers, Male Pins
Quality Control: Learn More
Connector Header Through Hole, Right Angle 76 position
Additional Information
Series: 40RoHS Status: Request inventory verificationManufacturer Lead Time: 20 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Header |
| Voltage Rating | - |
| Current Rating (Amps) | - |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 76 |
| Number of Rows | 2 |
| Style | Board to Cable/Wire |
| Operating Temperature | - |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | - |
| Contact Material | - |
| Insulation Color | Blue |
| Pitch - Mating | - |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | - |
| Contact Shape | Rectangular |
| Contact Length - Post | 0.146"" (3.70mm) |
| Insulation Height | 0.787"" (19.99mm) |
| Shrouding | Shrouded - 4 Wall |
| Overall Contact Length | - |
| Insulation Material | - |
| Row Spacing - Mating | 0.205"" (5.20mm) |
| Contact Length - Mating | - |
Request a Quote
Clients Also Buy

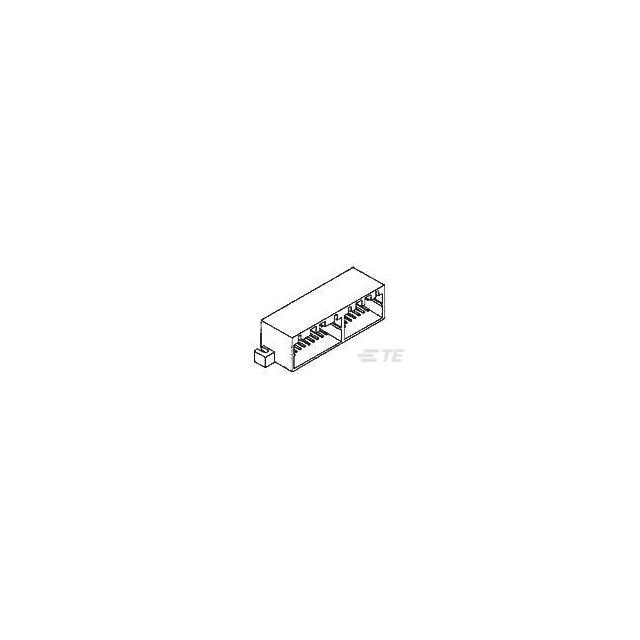

1-175976-2
040 MLC MK-2 CAP ASSY 28P (H)
44-BCA2-NAO
PMI .250"" LED 2V TAB DIFF AMBER

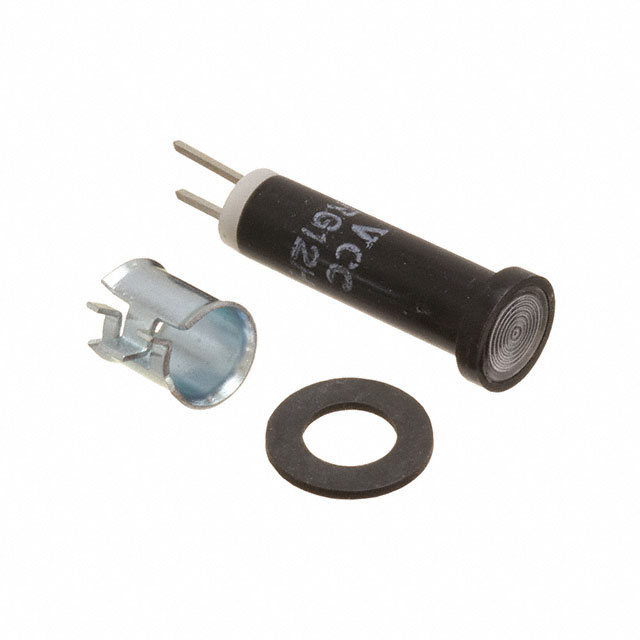

44-LRG12H-CWO
