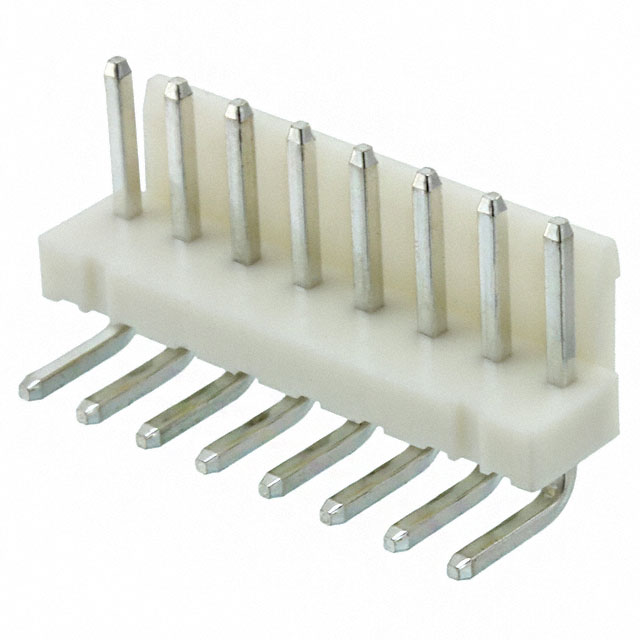

647676-8
CONN HEADER R/A 8POS 3.96MMManufacturer: TE Connectivity AMP Connectors
Categories: Headers, Male Pins
Quality Control: Learn More
Connector Header Through Hole, Right Angle 8 position 0.156"" (3.96mm)
Additional Information
Series: Economy PowerRoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Header |
| Voltage Rating | 250VAC |
| Current Rating (Amps) | 7.5A |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 8 |
| Number of Rows | 1 |
| Style | Board to Cable/Wire |
| Operating Temperature | -25°C ~ 105°C |
| Contact Type | Male Pin |
| Fastening Type | Locking Ramp |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Brass |
| Insulation Color | White |
| Pitch - Mating | 0.156"" (3.96mm) |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | 80.0µin (2.03µm) |
| Contact Finish - Post | Tin |
| Contact Shape | Square |
| Contact Length - Post | 0.142"" (3.60mm) |
| Insulation Height | 0.339"" (8.61mm) |
| Shrouding | Shrouded - 1 Wall |
| Overall Contact Length | - |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Row Spacing - Mating | - |
| Contact Length - Mating | 0.338"" (8.59mm) |
Request a Quote
Clients Also Buy

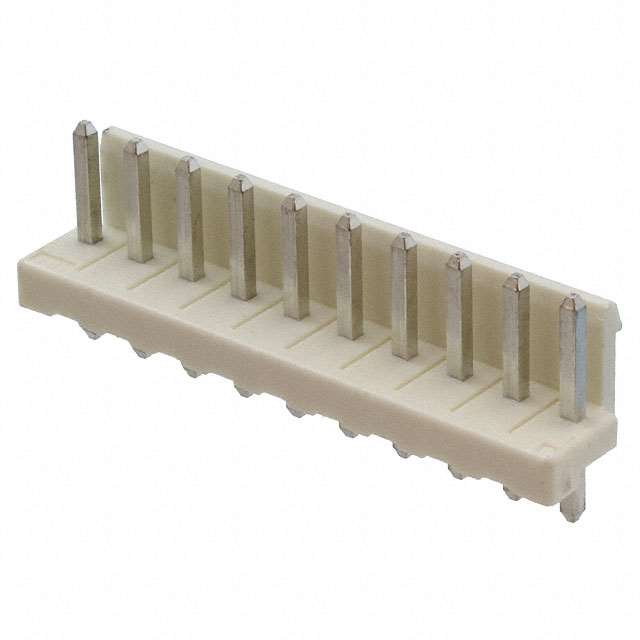

1-1123723-0
CONN HEADER VERT 10POS 3.96MM

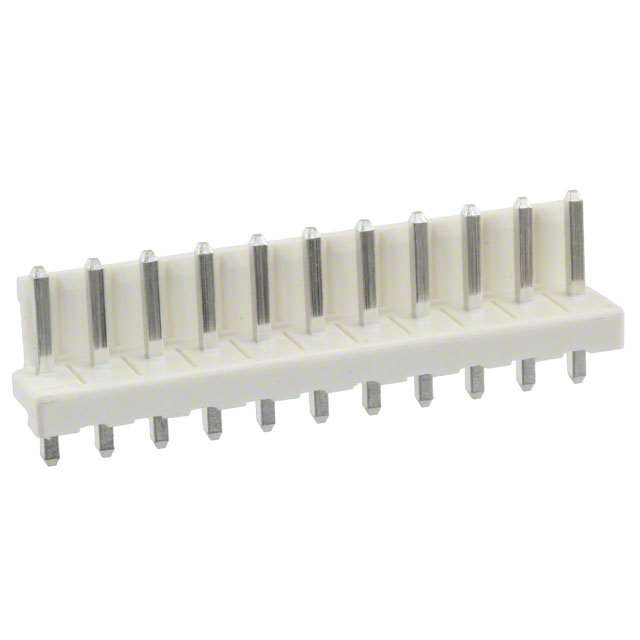

1-1123723-1
CONN HEADER VERT 11POS 3.96MM

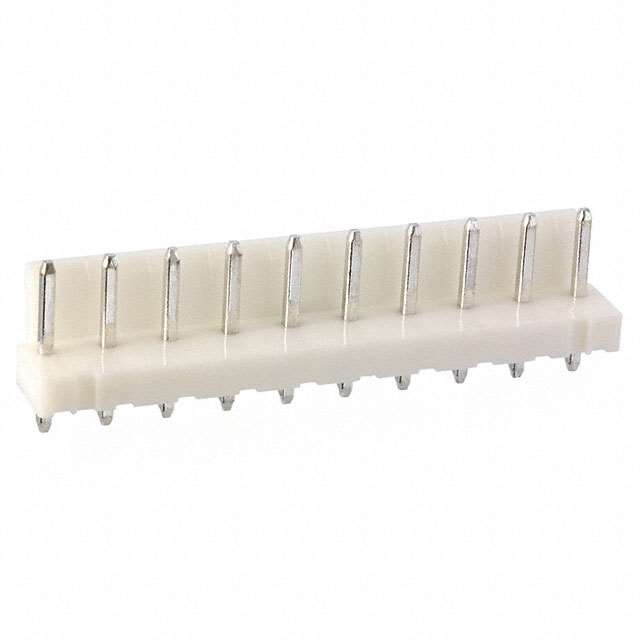

1-1744037-0
