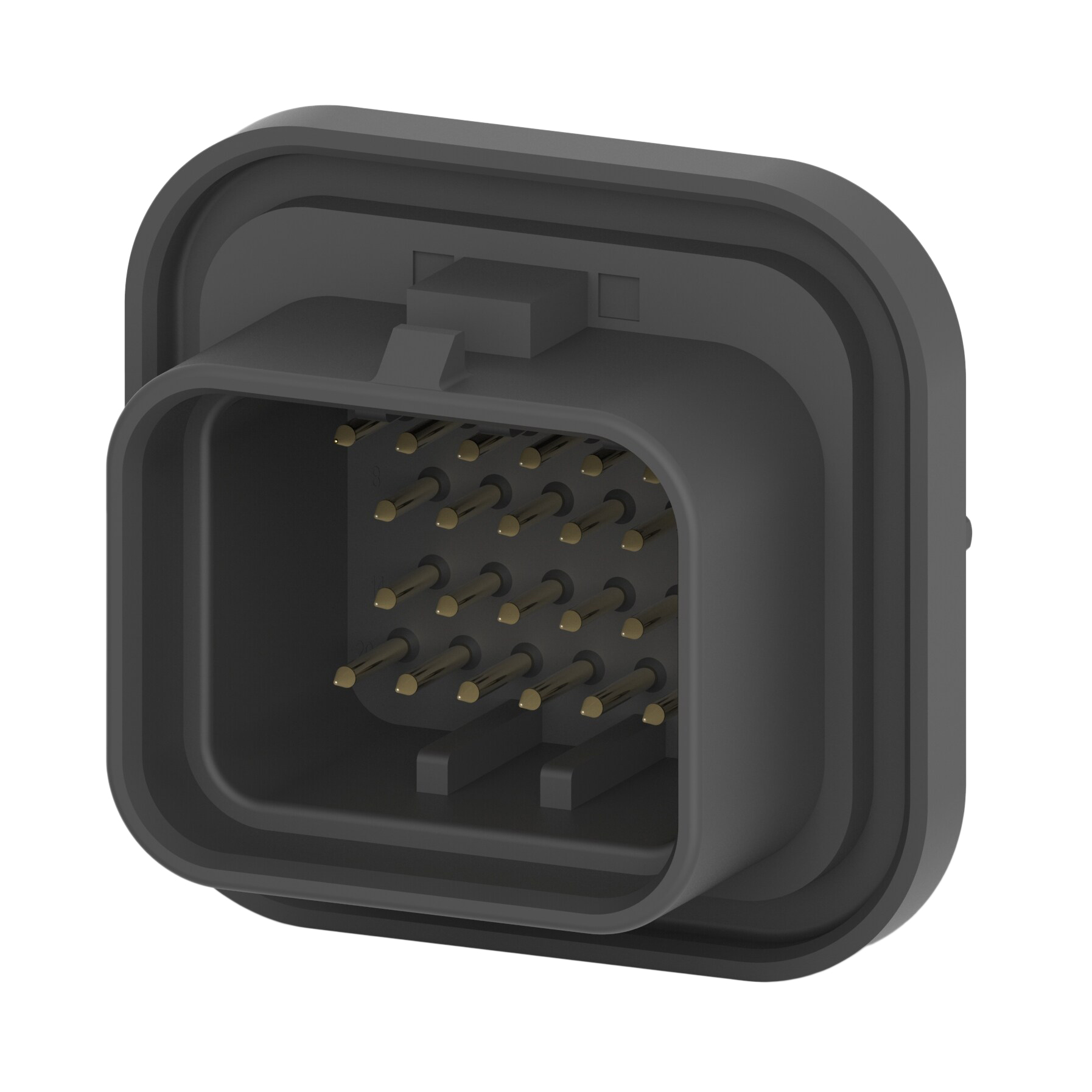

6473418-2
CONN HEADER VERT 26POS 3MMManufacturer: TE Connectivity AMP Connectors
Categories: Headers, Male Pins
Quality Control: Learn More
Connector Header Through Hole 26 position 0.118"" (3.00mm)
Additional Information
Series: SupersealRoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Sealed |
| Packaging | Tube |
| Connector Type | Receptacle |
| Voltage Rating | 250V |
| Current Rating (Amps) | Varies by Wire Gauge |
| Mounting Type | Through Hole |
| Number of Positions | 26 |
| Number of Rows | 4 |
| Style | Board to Cable/Wire |
| Operating Temperature | -40°C ~ 125°C |
| Contact Type | Male Pin |
| Fastening Type | Locking Ramp |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | - |
| Contact Material | Brass |
| Insulation Color | - |
| Pitch - Mating | 0.118"" (3.00mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin |
| Contact Shape | Circular |
| Contact Length - Post | - |
| Insulation Height | 0.972"" (24.70mm) |
| Shrouding | Shrouded - 4 Wall |
| Overall Contact Length | - |
| Insulation Material | Polyester |
| Row Spacing - Mating | - |
| Contact Length - Mating | - |
Request a Quote
Clients Also Buy

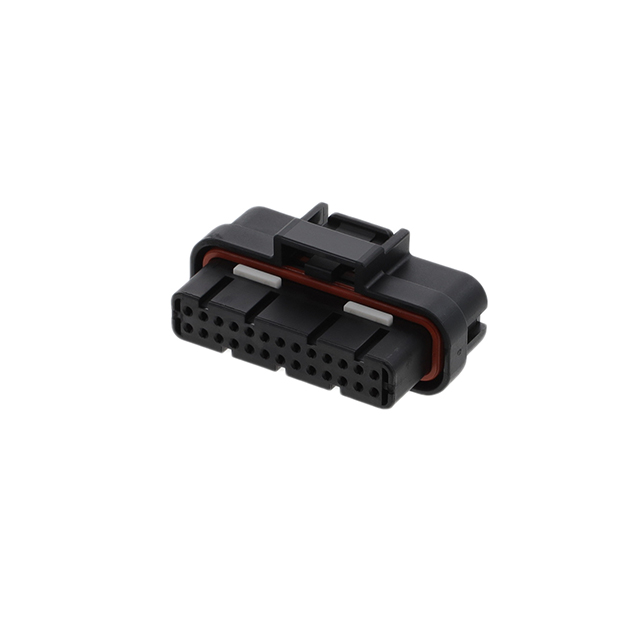

1473712-1
