644752-4
CONN HEADER VERT 4POS 3.96MMManufacturer: TE Connectivity AMP Connectors
Categories: Headers, Male Pins
Quality Control: Learn More
Connector Header Through Hole 4 position 0.156"" (3.96mm)
Additional Information
Series: MTA-156RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Header |
| Voltage Rating | 600VAC |
| Current Rating (Amps) | Varies by Wire Gauge |
| Mounting Type | Through Hole |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Style | Board to Cable/Wire |
| Operating Temperature | -55°C ~ 105°C |
| Contact Type | Male Pin |
| Fastening Type | Friction Lock |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Copper Alloy |
| Insulation Color | Natural |
| Pitch - Mating | 0.156"" (3.96mm) |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin |
| Contact Shape | Square |
| Contact Length - Post | 0.175"" (4.45mm) |
| Insulation Height | 0.425"" (10.80mm) |
| Shrouding | Shrouded - 1 Wall |
| Overall Contact Length | 0.700"" (17.78mm) |
| Insulation Material | Thermoplastic, Glass Filled |
| Row Spacing - Mating | - |
| Contact Length - Mating | 0.400"" (10.16mm) |
Request a Quote
Clients Also Buy

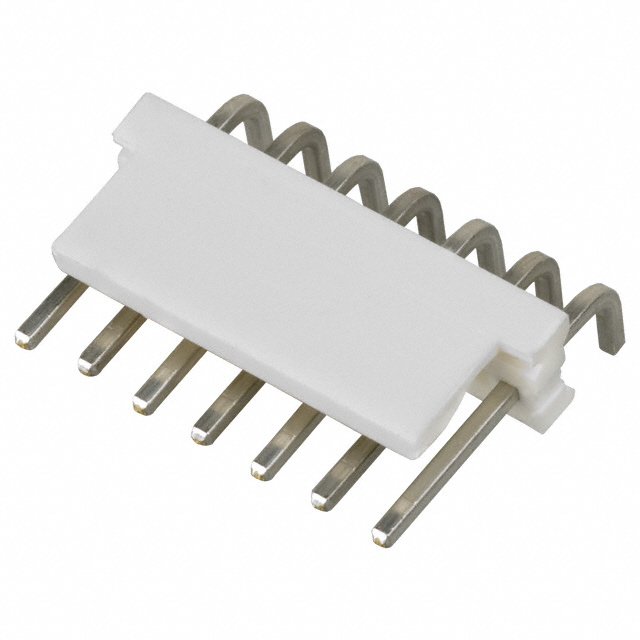

640389-7
CONN HEADER R/A 7POS 3.96MM
1-640383-3
CONN HEADER VERT 13POS 3.96MM

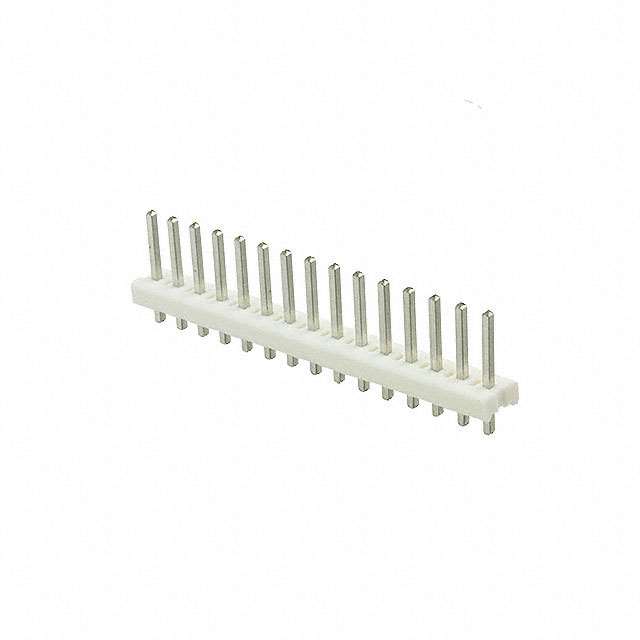

1-640383-5
