644613-3
CONN HEADER R/A 3POS 3.96MMManufacturer: TE Connectivity AMP Connectors
Categories: Headers, Male Pins
Quality Control: Learn More

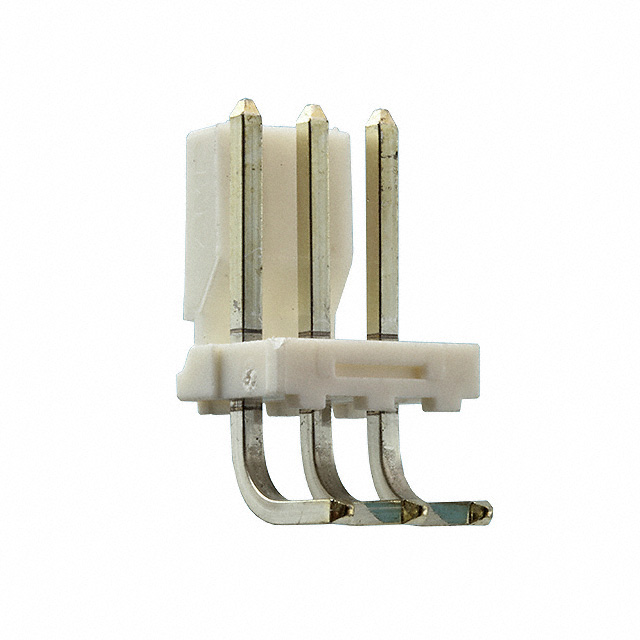

TE Connectivity AMP Connectors MTA-156 Series connector, part 644613-3, is a 3-position, shrouded, right-angle header with a 0.156" (3.96mm) pitch. This through-hole mounted component features male pin contacts made from copper alloy with a tin-lead finish, offering a mating contact length of 0.450" (11.43mm). The header's natural colored, glass-filled thermoplastic insulation has a UL94 V-0 flammability rating and an insulation height of 0.300" (7.62mm). Designed for board-to-cable/wire applications, it operates within a temperature range of -55°C to 105°C and supports a 600VAC voltage rating. This bulk-packaged component is suitable for use in automotive and industrial automation applications.
Additional Information
Series: MTA-156RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Header |
| Voltage Rating | 600VAC |
| Current Rating (Amps) | Varies by Wire Gauge |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Style | Board to Cable/Wire |
| Operating Temperature | -55°C ~ 105°C |
| Contact Type | Male Pin |
| Fastening Type | Friction Lock |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Copper Alloy |
| Insulation Color | Natural |
| Pitch - Mating | 0.156"" (3.96mm) |
| Contact Finish - Mating | Tin-Lead |
| Contact Finish Thickness - Mating | 150.0µin (3.81µm) |
| Contact Finish - Post | Tin-Lead |
| Contact Shape | Square |
| Contact Length - Post | 0.125"" (3.18mm) |
| Insulation Height | 0.300"" (7.62mm) |
| Shrouding | Shrouded - 1 Wall |
| Overall Contact Length | - |
| Insulation Material | Thermoplastic, Glass Filled |
| Row Spacing - Mating | - |
| Contact Length - Mating | 0.450"" (11.43mm) |
