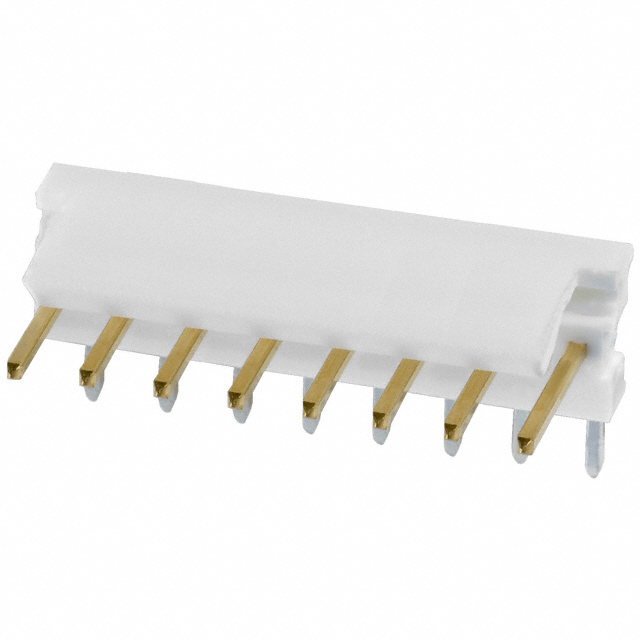

641216-8
CONN HEADER R/A 8POS 2.54MMManufacturer: TE Connectivity AMP Connectors
Categories: Headers, Male Pins
Quality Control: Learn More
TE Connectivity AMP Connectors MTA-100 series connector header, part number 641216-8, is a right-angle, through-hole component designed for board-to-cable applications. This 8-position header features a 2.54mm pitch and a shrouded, single-wall design for enhanced protection. The male pin contacts are constructed from a copper alloy with a gold mating finish (30.0µin) and a tin post finish. It operates within a temperature range of -55°C to 105°C and carries a voltage rating of 250VAC. The natural colored thermoplastic insulation is rated UL94 V-0 for material flammability. This component is frequently utilized in telecommunications, industrial automation, and consumer electronics sectors.
Additional Information
Series: MTA-100RoHS Status: Vendor undefinedManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Header |
| Voltage Rating | 250VAC |
| Current Rating (Amps) | Varies by Wire Gauge |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 8 |
| Number of Rows | 1 |
| Style | Board to Cable/Wire |
| Operating Temperature | -55°C ~ 105°C |
| Contact Type | Male Pin |
| Fastening Type | Friction Lock |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Copper Alloy |
| Insulation Color | Natural |
| Pitch - Mating | 0.100"" (2.54mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin |
| Contact Shape | Square |
| Contact Length - Post | 0.140"" (3.56mm) |
| Insulation Height | 0.225"" (5.72mm) |
| Shrouding | Shrouded - 1 Wall |
| Overall Contact Length | - |
| Insulation Material | Thermoplastic |
| Row Spacing - Mating | - |
| Contact Length - Mating | 0.295"" (7.49mm) |
