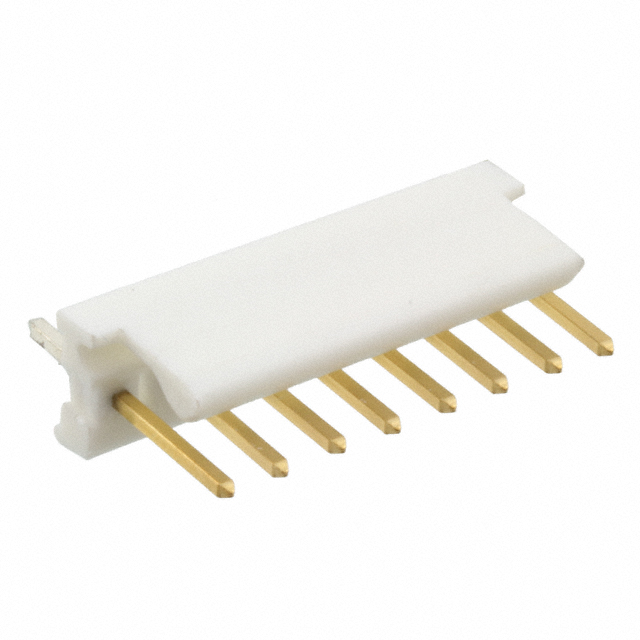

641126-8
CONN HEADER VERT 8POS 2.54MMManufacturer: TE Connectivity AMP Connectors
Categories: Headers, Male Pins
Quality Control: Learn More
TE Connectivity AMP Connectors MTA-100 series connector header with part number 641126-8. This 8-position, single-row, shrouded header features a 0.100" (2.54mm) pitch and a through-hole mounting style. The male pins are constructed from copper alloy with a tin finish on the post and gold plating (15.0µin) on the mating contact. Designed for board-to-cable/wire applications, this header offers a friction lock fastening type and a 250VAC voltage rating. The natural colored thermoplastic insulation has a UL94 V-0 flammability rating. Operating temperature range is -55°C to 105°C. This component is commonly utilized in industrial automation and consumer electronics.
Additional Information
Series: MTA-100RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Header |
| Voltage Rating | 250VAC |
| Current Rating (Amps) | Varies by Wire Gauge |
| Mounting Type | Through Hole |
| Number of Positions | 8 |
| Number of Rows | 1 |
| Style | Board to Cable/Wire |
| Operating Temperature | -55°C ~ 105°C |
| Contact Type | Male Pin |
| Fastening Type | Friction Lock |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Copper Alloy |
| Insulation Color | Natural |
| Pitch - Mating | 0.100"" (2.54mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 15.0µin (0.38µm) |
| Contact Finish - Post | Tin |
| Contact Shape | Square |
| Contact Length - Post | 0.140"" (3.56mm) |
| Insulation Height | 0.305"" (7.75mm) |
| Shrouding | Shrouded - 1 Wall |
| Overall Contact Length | 0.535"" (13.59mm) |
| Insulation Material | Thermoplastic |
| Row Spacing - Mating | - |
| Contact Length - Mating | 0.295"" (7.49mm) |
