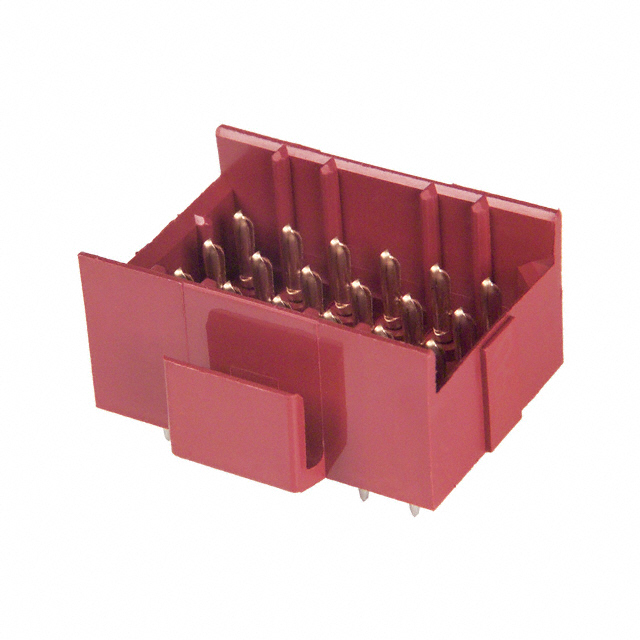

640505-4
CONN HEADER VERT 24POS 4.2MMManufacturer: TE Connectivity AMP Connectors
Categories: Headers, Male Pins
Quality Control: Learn More
Connector Header Through Hole 24 position 0.165"" (4.20mm)
Additional Information
Series: MR (Miniature Rectangular)RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: 32 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Header |
| Voltage Rating | 250VAC |
| Current Rating (Amps) | 6A |
| Mounting Type | Through Hole |
| Number of Positions | 24 |
| Number of Rows | 4 |
| Style | Board to Cable/Wire |
| Operating Temperature | -55°C ~ 105°C |
| Contact Type | Male Pin |
| Fastening Type | Latch Lock |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Phosphor Bronze |
| Insulation Color | Black, Red |
| Pitch - Mating | 0.165"" (4.20mm) |
| Contact Finish - Mating | Gold or PdNi +Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin-Lead |
| Contact Shape | Circular |
| Contact Length - Post | 0.210"" (5.33mm) |
| Insulation Height | 0.531"" (13.50mm) |
| Shrouding | Shrouded - 4 Wall |
| Overall Contact Length | - |
| Insulation Material | Polyamide (PA), Nylon |
| Row Spacing - Mating | 0.165"" (4.20mm) |
| Contact Length - Mating | 0.220"" (5.59mm) |
