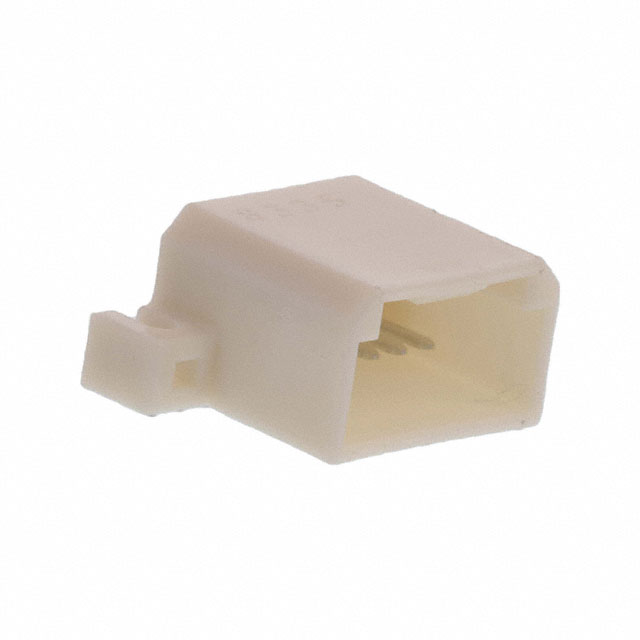

638102-1
CONN HEADER R/A 6POS 2.5MMManufacturer: TE Connectivity AMP Connectors
Categories: Headers, Male Pins
Quality Control: Learn More
TE Connectivity AMP Connectors Multi-Lock Series connector header, part number 638102-1, is a right-angle, through-hole component designed for board-to-cable/wire applications. This 6-position header features a 2.50mm pitch and a shrouded, 4-wall design for robust connection integrity. The brass contacts, with a post length of 0.146"" (3.70mm), are terminated via solder and utilize a tab contact type. The natural-colored PBT insulation provides a 0.453"" (11.50mm) insulation height. This connector is equipped with a locking ramp for secure mating and a mounting flange for stable integration. Commonly found in automotive and industrial automation systems, this component is supplied in bulk packaging.
Additional Information
Series: Multi-LockRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Mounting Flange |
| Packaging | Bulk |
| Connector Type | - |
| Voltage Rating | - |
| Current Rating (Amps) | - |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 6 |
| Number of Rows | 1 |
| Style | Board to Cable/Wire |
| Operating Temperature | - |
| Contact Type | Tab |
| Fastening Type | Locking Ramp |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | - |
| Contact Material | Brass |
| Insulation Color | Natural |
| Pitch - Mating | 0.098"" (2.50mm) |
| Contact Finish - Mating | - |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | - |
| Contact Shape | Rectangular |
| Contact Length - Post | 0.146"" (3.70mm) |
| Insulation Height | 0.453"" (11.50mm) |
| Shrouding | Shrouded - 4 Wall |
| Overall Contact Length | - |
| Insulation Material | Polybutylene Terephthalate (PBT) |
| Row Spacing - Mating | - |
| Contact Length - Mating | - |
