6-102692-6

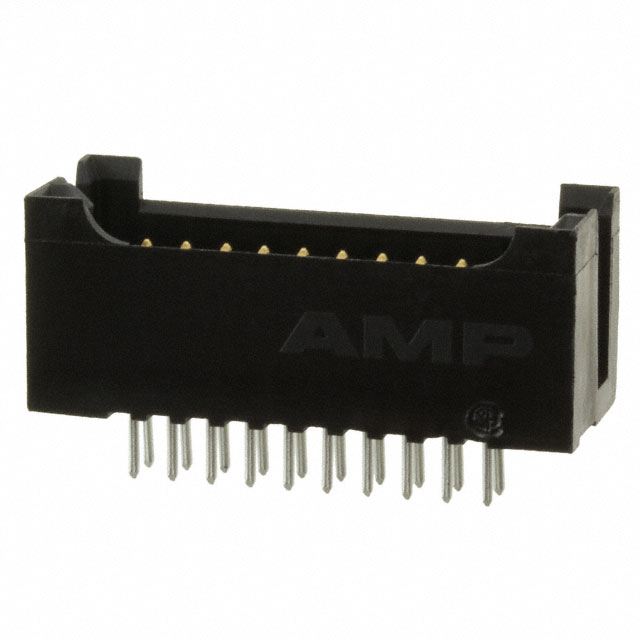

CONN HEADER VERT 20POS 2.54MMManufacturer: TE Connectivity AMP Connectors
Categories: Headers, Male Pins
Quality Control: Learn More
The TE Connectivity AMP Connectors AMPMODU Mod II series connector, part number 6-102692-6, is a 20-position, dual-row header with a 2.54mm pitch. This through-hole mounted component features gold-plated mating contacts with a thickness of 30µin (0.76µm) for reliable connectivity, and tin-plated posts for solder termination. Constructed from UL94 V-0 rated glass-filled thermoplastic, the header offers a robust insulation system with a height of 0.550" (13.97mm). Designed for board-to-board or cable applications, it supports a 2A current rating and a 250VAC voltage rating. The shrouded design with four walls ensures proper mating alignment. This component is commonly utilized in industrial automation, telecommunications, and consumer electronics sectors.
Additional Information
Series: AMPMODU Mod IIRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Connector Type | Header |
| Voltage Rating | 250VAC |
| Current Rating (Amps) | 2A |
| Mounting Type | Through Hole |
| Number of Positions | 20 |
| Number of Rows | 2 |
| Style | Board to Board or Cable |
| Operating Temperature | -65°C ~ 105°C |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Copper Alloy |
| Insulation Color | Black |
| Pitch - Mating | 0.100"" (2.54mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin |
| Contact Shape | Square |
| Contact Length - Post | 0.180"" (4.57mm) |
| Insulation Height | 0.550"" (13.97mm) |
| Shrouding | Shrouded - 4 Wall |
| Overall Contact Length | - |
| Insulation Material | Thermoplastic, Glass Filled |
| Row Spacing - Mating | 0.100"" (2.54mm) |
| Contact Length - Mating | - |
