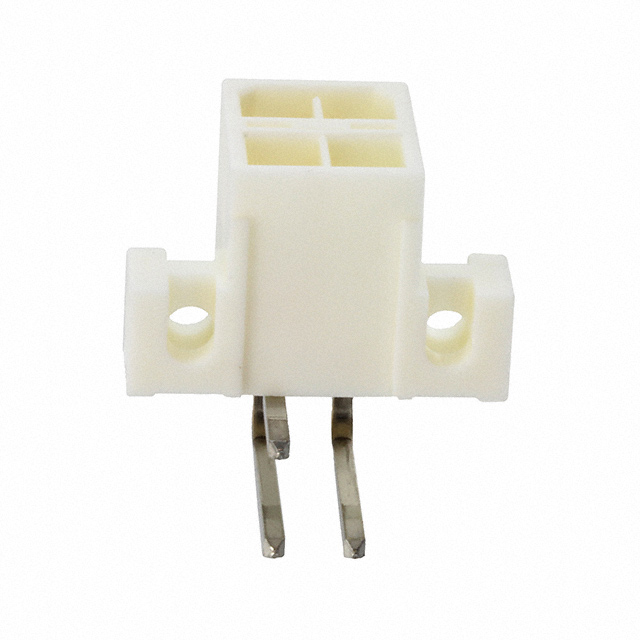

CONN HEADER R/A 4POS 4.2MMManufacturer: TE Connectivity AMP Connectors
Categories: Headers, Male Pins
Quality Control: Learn More
TE Connectivity AMP Connectors AMP-DUAC Series connector header, part number 5794172-4. This right-angle, through-hole mounted header features 4 positions with a 4.20mm pitch. It utilizes male pin contacts with a square shape, constructed from brass with gold mating contacts (30.0µin thickness) and tin post contacts. The PBT insulation, rated UL94 V-0, provides a natural color and a height of 0.461". This shrouded header, with 4 walls, supports board-to-board or cable applications. Key design features include a locking ramp for secure mating and mounting flanges. The operating temperature range is -55°C to 105°C, with a voltage rating of 600VAC. This component is commonly found in industrial automation and telecommunications equipment.
Additional Information
Series: AMP-DUACRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Mounting Flange |
| Packaging | Bulk |
| Connector Type | Header |
| Voltage Rating | 600VAC |
| Current Rating (Amps) | - |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 4 |
| Number of Rows | 2 |
| Style | Board to Board or Cable |
| Operating Temperature | -55°C ~ 105°C |
| Contact Type | Male Pin |
| Fastening Type | Locking Ramp |
| Number of Positions Loaded | 3 |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Brass |
| Insulation Color | Natural |
| Pitch - Mating | 0.165"" (4.20mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin |
| Contact Shape | Square |
| Contact Length - Post | 0.138"" (3.50mm) |
| Insulation Height | 0.461"" (11.70mm) |
| Shrouding | Shrouded - 4 Wall |
| Overall Contact Length | - |
| Insulation Material | Polybutylene Terephthalate (PBT) |
| Row Spacing - Mating | 0.217"" (5.51mm) |
| Contact Length - Mating | 0.205"" (5.21mm) |
