5149009-1

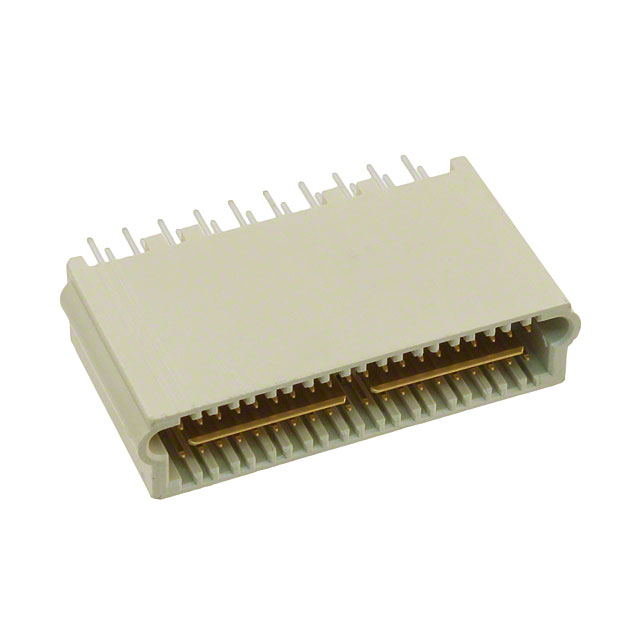

CONN HEADER VERT 40POS 1.27MMManufacturer: TE Connectivity AMP Connectors
Categories: Headers, Male Pins
Quality Control: Learn More
TE Connectivity AMP Connectors Micro-Strip series connector housing, part number 5149009-1. This 40-position, 2-row vertical header features a 0.050" (1.27mm) pitch and is designed for through-hole mounting. The male pin contacts are made of Phosphor Bronze with a square mating face. Mating contacts offer a 30µin (0.76µm) gold plating for enhanced conductivity, while the post contacts utilize tin plating. This shrouded connector, with a natural thermoplastic insulator, supports 30VAC voltage rating and operates across a temperature range of -65°C to 125°C. It is suitable for board-to-board applications. Industries utilizing this component include telecommunications and industrial automation.
Additional Information
Series: Micro-StripRoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Ground Bus (Plane) |
| Packaging | Tube |
| Connector Type | Plug |
| Voltage Rating | 30VAC |
| Current Rating (Amps) | Varies by Wire Gauge |
| Mounting Type | Through Hole |
| Number of Positions | 40 |
| Number of Rows | 2 |
| Style | Board to Board |
| Operating Temperature | -65°C ~ 125°C |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | - |
| Contact Material | Phosphor Bronze |
| Insulation Color | Natural |
| Pitch - Mating | 0.050"" (1.27mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin |
| Contact Shape | Square |
| Contact Length - Post | - |
| Insulation Height | 0.648"" (16.46mm) |
| Shrouding | Shrouded - 4 Wall |
| Overall Contact Length | - |
| Insulation Material | Thermoplastic |
| Row Spacing - Mating | 0.100"" (2.54mm) |
| Contact Length - Mating | - |
Request a Quote
Clients Also Buy
149009-3
CONN HEADER VERT 80POS 1.27MM
5536255-5
CONN RCPT 120POS 0.05 GOLD PCB
5536280-5

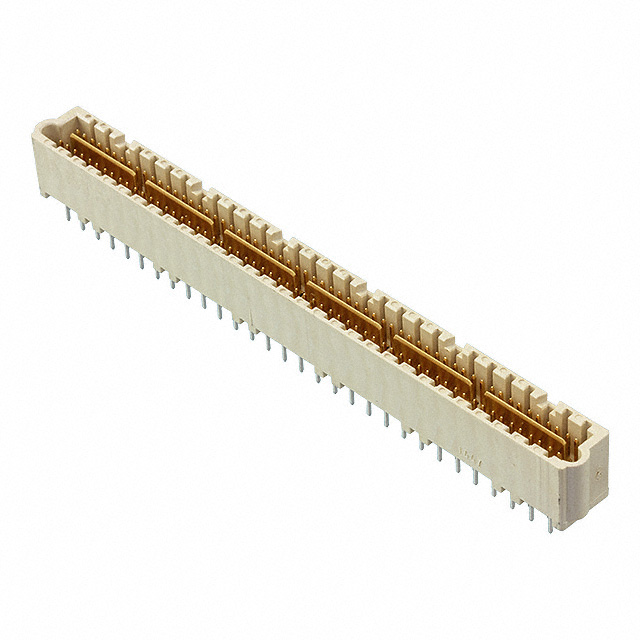

CONN HEADER VERT 120POS 1.27MM
