5102322-4

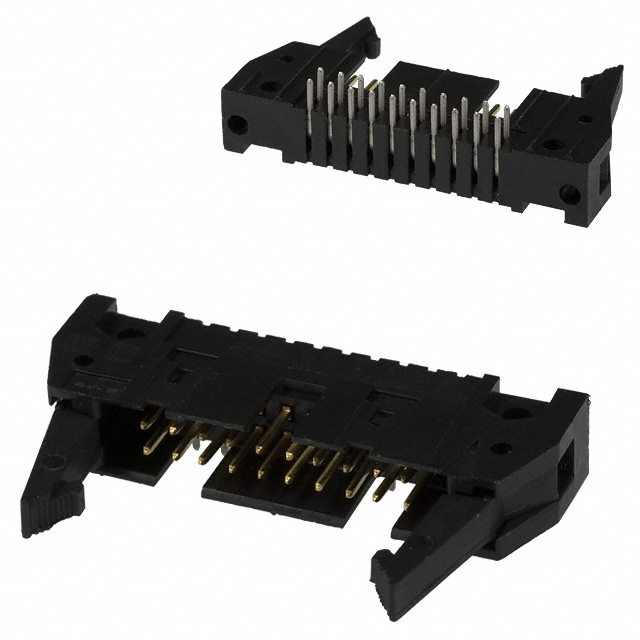

CONN HEADER R/A 20POS 2.54MMManufacturer: TE Connectivity AMP Connectors
Categories: Headers, Male Pins
Quality Control: Learn More
Connector Header Through Hole, Right Angle 20 position 0.100"" (2.54mm)
Additional Information
Series: AMP-LatchRoHS Status: ROHS3 CompliantManufacturer Lead Time: 11 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Keying Slot, Mounting Flange |
| Packaging | Tray |
| Connector Type | Header |
| Voltage Rating | 250VAC |
| Current Rating (Amps) | 1A per Contact |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 20 |
| Number of Rows | 2 |
| Style | Board to Cable/Wire |
| Operating Temperature | -65°C ~ 105°C |
| Contact Type | Male Pin |
| Fastening Type | Latch Lock/Eject Hooks, Long |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Brass |
| Insulation Color | Black |
| Pitch - Mating | 0.100"" (2.54mm) |
| Contact Finish - Mating | Gold or Gold-Palladium |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin |
| Contact Shape | Square |
| Contact Length - Post | 0.155"" (3.94mm) |
| Insulation Height | 0.315"" (8.00mm) |
| Shrouding | Shrouded - 4 Wall |
| Overall Contact Length | - |
| Insulation Material | - |
| Row Spacing - Mating | 0.100"" (2.54mm) |
| Contact Length - Mating | 0.240"" (6.10mm) |
