5-87579-5

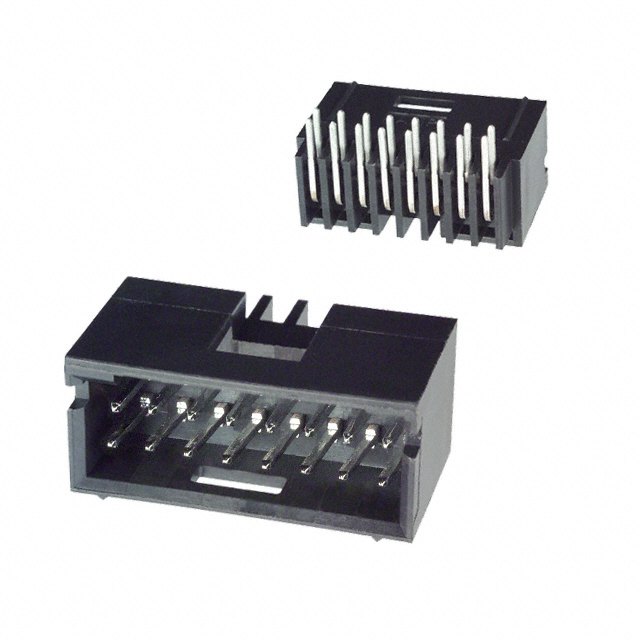

CONN HEADER R/A 16POS 2.54MMManufacturer: TE Connectivity AMP Connectors
Categories: Headers, Male Pins
Quality Control: Learn More
TE Connectivity AMP Connectors AMPMODU Mod II series offers the 5-87579-5, a 16-position, right-angle header with a 2.54mm pitch. This through-hole mounted connector features a shrouded, four-wall design constructed from UL94 V-0 rated thermoplastic insulation in black. The phosphor bronze contacts, finished with tin plating (100.0µin mating, unspecified post thickness), provide a reliable 3A current rating. Designed for board-to-board or cable applications, it utilizes male pin contacts with a square shape. Operating within a temperature range of -65°C to 105°C, this connector is suitable for industrial automation, automotive, and consumer electronics segments. The connector employs a detent lock fastening type and is supplied in tray packaging.
Additional Information
Series: AMPMODU Mod IIRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Connector Type | Header |
| Voltage Rating | - |
| Current Rating (Amps) | 3A |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 16 |
| Number of Rows | 2 |
| Style | Board to Board or Cable |
| Operating Temperature | -65°C ~ 105°C |
| Contact Type | Male Pin |
| Fastening Type | Detent Lock |
| Number of Positions Loaded | All |
| Termination | Solder |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Phosphor Bronze |
| Insulation Color | Black |
| Pitch - Mating | 0.100"" (2.54mm) |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | 100.0µin (2.54µm) |
| Contact Finish - Post | Tin |
| Contact Shape | Square |
| Contact Length - Post | 0.135"" (3.43mm) |
| Insulation Height | 0.400"" (10.16mm) |
| Shrouding | Shrouded - 4 Wall |
| Overall Contact Length | - |
| Insulation Material | Thermoplastic |
| Row Spacing - Mating | 0.100"" (2.54mm) |
| Contact Length - Mating | 0.318"" (8.08mm) |
